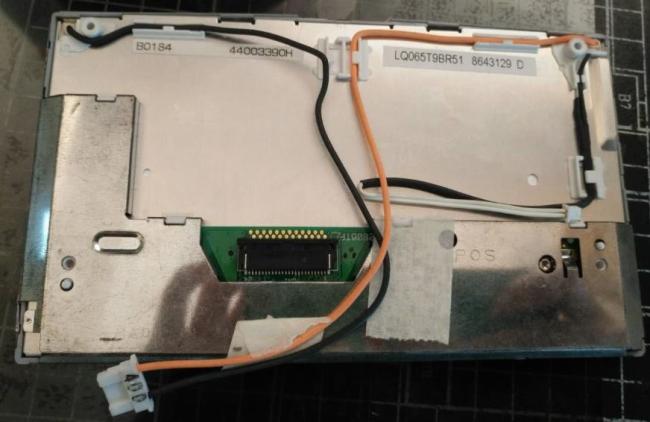

6.5" LCM 400×240RGB 220cd/m² LQ065T9BR51 Sharp TFT LCD Display
LQ065 Series LQ065T9BR53 LQ065T9BR52 LQ065T9BR51U LQ065T9BR51 LQ065T9BR54U
Sharp LQ065T9BR51 Optical Details
| Basic Information : | Luminance | 220 cd/m² (Typ.) | Contrast Ratio | 60 : 1 (Typ.) (Transmissive) 7:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 15/35 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 50/50/40/50 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transflective | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | Full color |
| Color Temperature | 6485K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Tech | - | Reflectance | 10% (Typ.) |
Sharp LQ065T9BR51 Mechanical Details
| Pixel Features : | Number of Pixel | 400(RGB)×240 [WQVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.1195×0.3305 mm | Pixel Pitch(W×H) | 0.3585×0.3305 mm [72PPI] | |
| Physical Size : | Active Viewing | 143.4(W)×79.326(H) mm | Overall Dim. | 155(W)×89.2(H) mm |
| Bezel Opening | - | Overall Depth | 12.5 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 190±10g | Surface | Antiglare |
Sharp LQ065T9BR51 Interface Details
| Signal Electrical : | Input Current | 60/1.3/3mA (Typ.)(ISH/IGH/IGL) | Input Voltage | 5/13/-16V (Typ.)(VSH/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 365/489mW (Typ./Max.) | Signal Interface | Analog RGB + Composite Video (NTSC/PAL) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| FCI | SFR24R-1STE1 | 1 pcs | 0.8 mm | 24 pins | ||
Sharp LQ065T9BR51 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | - | |
| Lamp Electrical : | Input Current | 6.5±0.5mA | Input Voltage | 700±70V | ||
| Frequency | 35/60KHz (Min./Max.) | Turn-on Voltage | 3000/3000V (Max.)(Ta=+25/-30℃) | |||
| Consumption | 4.55W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-02(8.0)VS-1N | 1 pcs | 8.0 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
LQ065T9BR51 supports display 400(RGB)×240 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 143.4(W)×79.326(H) mm, outline size of 155(W)×89.2(H) mm, with surface treament of Antiglare, net weight of 190±10g. As a TN, Normally White, Transflective LCM product, LQ065T9BR51 can provides 220 cd/m² display brightness 60:1 transimissive contrast ratio, 7:1 (Typ.) reflective contrast ratio, 50/50/40/50 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/35 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
