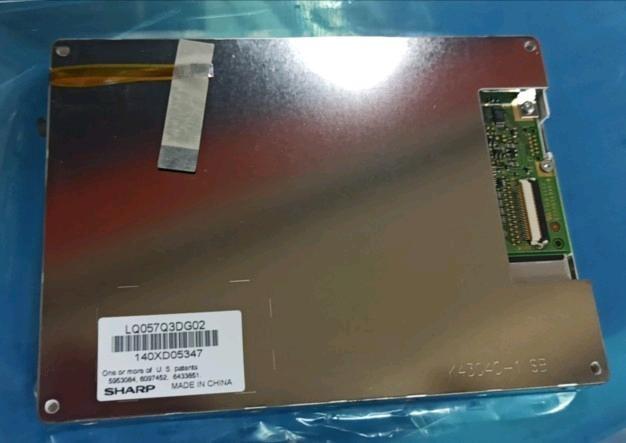

LQ057Q3DG02 Sharp 5.7" LCM 320×240RGB 400cd/m² INDUSTRIAL LCD DISPLAY
LQ057 Series LQ057Q3DG02 LQ057Q3DG01 LQ057Q3DC12 LQ057Q3DC11 LQ057Q3DC03
Sharp LQ057Q3DG02 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ057Q3DG02 | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 70 °C | -30 ~ 70 °C | - |
Sharp LQ057Q3DG02 Mechanical Features
| Screen Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 115.2×86.4 mm | 121.0×92.2 mm | 144×103.8 mm | 12.3±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 210g (Max.) | - | - | ||
Sharp LQ057Q3DG02 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 550:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 80/80/80/65 (Typ.)(CR≥5) | 30/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
Sharp LQ057Q3DG02 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 30K(Typ.) | 5S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 16.0/17.5V (Typ./Max.) | 20mA (Typ.) | 1.28W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| - | FPC | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 8 pins | 0.5 mm | ||||
Sharp LQ057Q3DG02 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 20/30mA (Typ.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.1VCC; 0.9VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| IRISO | IMSA-9637S-33Y902 | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-040A | |
LQ057Q3DG02 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×103.8(H)×12.8(D) mm, viewing area size of 121.0(W)×92.2(H) mm, net weight of 210g (Max.). As a TN, Normally White, Transmissive LCM product, LQ057Q3DG02 can provides 400 cd/m² display brightness 550:1 transimissive contrast ratio, 80/80/80/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 5S4P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours.
