LQ057Q3DC03 Sharp 5.7" LCM 320×240RGB 500cd/m² INDUSTRIAL LCD DISPLAY
LQ057 Series LQ057Q3DG02 LQ057Q3DG01 LQ057Q3DC12 LQ057Q3DC11 LQ057Q3DC03

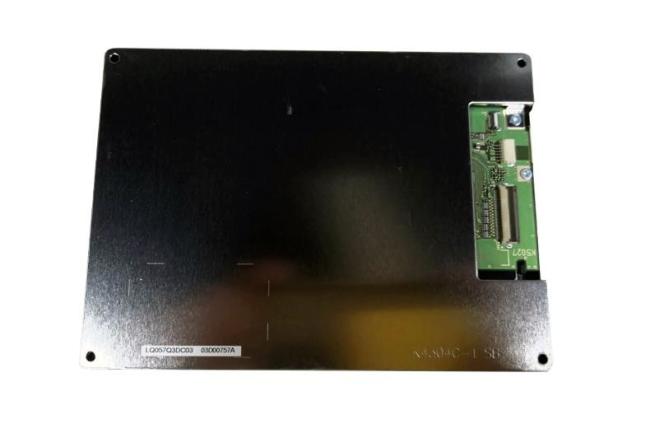

Sharp LQ057Q3DC03 Mechanical Details
| Pixel Features : | Pixel Format | 320×240(RGB) [QVGA] | Dot Pitch | 0.360×0.120 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Horizontal Stripe | Pixel Pitch | 0.360×0.360 mm (H×V) [70PPI] | |
| Mechanical Size : | Display Area | 115.2×86.4 mm (H×V) | Bezel Area | 121.0×92.2 mm (H×V) |
| Outline Dim. | 144×104.6 mm (H×V) | Outline Depth | 12.3±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting holes (4-Φ2.6) | |||
| Other Features : | Weight | 210g (Max.) | Surface | Glare (Haze 0%), Hard coating (2H) |
Sharp LQ057Q3DC03 Optical Details
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 350:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/65 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
Sharp LQ057Q3DC03 Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM06B-SRSS-TB(LF)(SN) | 1.0 mm | 6 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 11.2/12.0/12.6V (Min./Typ./Max.) | Current Input | 200/250mA (Typ./Max.) | ||
Sharp LQ057Q3DC03 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 10/30mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | FH12-33S-0.5SH(55) | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-015A | |
LQ057Q3DC03 supports display 320×240(RGB) (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 121.0(W)×92.2(H) mm, with surface treament of Glare (Haze 0%), Hard coating (2H), net weight of 210g (Max.). As a TN, Normally White, Transmissive LCM product, LQ057Q3DC03 can provides 500 cd/m² display brightness 350:1 transimissive contrast ratio, 80/80/80/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver.
