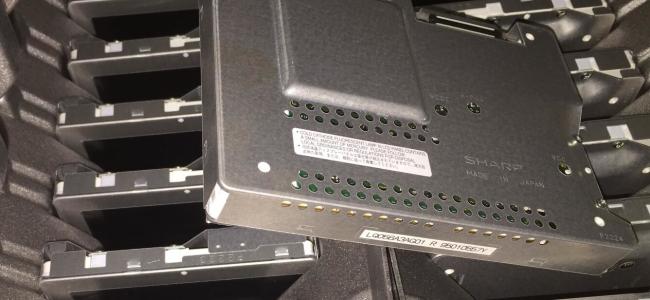

LQ056A3AG01 Sharp 5.6INCH LCM 320×234RGB 250cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2DAYS
Brand:
Sharp
Product Description
LQ056 Series LQ056A5GG01 LQ056A3AG01R LQ056A3AG01
Sharp LQ056A3AG01 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 65/65/40/65 (Typ.)(CR≥5) | 15/20 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 60 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | Full color | X:0.313; Y:0.329 |
Sharp LQ056A3AG01 Mechanical Features
| Panel Size : | 5.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×234 | RGB Vertical Stripe | 0.357×0.357 [71PPI] | 0.119×0.357 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 114.2(H) × 83.5(V) | 120.0(H) × 89.4(V) | 140(H) × 102.7(V) | 20.0 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Rear mounting holes (4-Φ2.2) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 250±20g | - | - | ||
Sharp LQ056A3AG01 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | - | 25K(Typ.) | Replaceable | |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0V (Typ.) | 380/470mA (Typ./Max.) | - | ||||
Sharp LQ056A3AG01 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 98/130mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Analog RGB + Composite Video (NTSC/PAL) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| IRISO | IMSA-9619S-24B-GF | 1.0 mm | 24 pins | 1 pcs | ||
