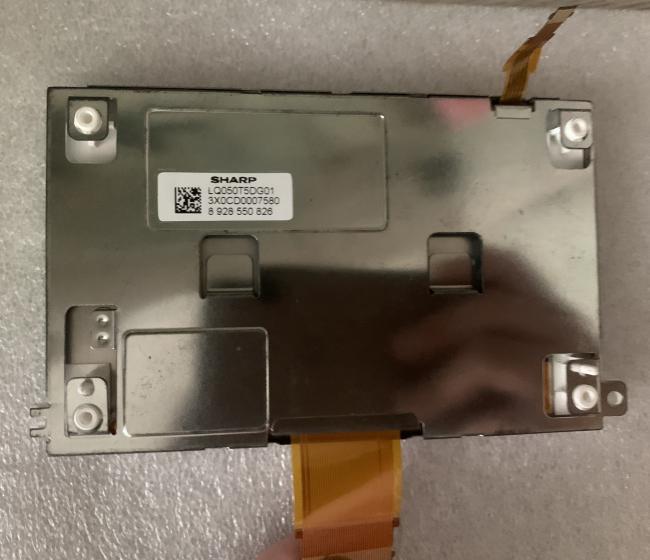

LQ050T5DG01 Sharp 5" LCM 400×240RGB 600cd/m² INDUSTRIAL LCD DISPLAY
LQ050 Series LQ050T5DG02 LQ050T5DG01
Sharp LQ050T5DG01 Mechanical Features
| Screen Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 400(RGB)×240, WQVGA | RGB Vertical Stripe | 0.090×0.270 mm | 0.270×0.270 mm [94PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 108×64.8 mm | 110.0×68.9 mm | 120.6×75.2 mm | 16.5±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 110g (Typ.) | - | Antiglare | ||
Sharp LQ050T5DG01 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 80/80/80/80 (Typ.)(CR≥5) | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7886K | 262K (6-bit) | X:0.295; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 51% | 71% | 53% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 53% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
Sharp LQ050T5DG01 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10K(Min.) | 4S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.2/13.2/14.5V (Min./Typ./Max.) | 55/60mA (Typ./Max.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | FPC | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 10 pcs | 1 pins | 0.5 mm | ||||
Sharp LQ050T5DG01 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/9.0V (Typ.)(VCC/VDC) | 2.7/11mA (Typ.)(ICC/IDC) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
LQ050T5DG01 supports display 400(RGB)×240 (WQVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 120.6(W)×75.2(H)×16.8(D) mm, viewing area size of 110.0(W)×68.9(H) mm, with surface treament of Antiglare, net weight of 110g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ050T5DG01 can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 4S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
