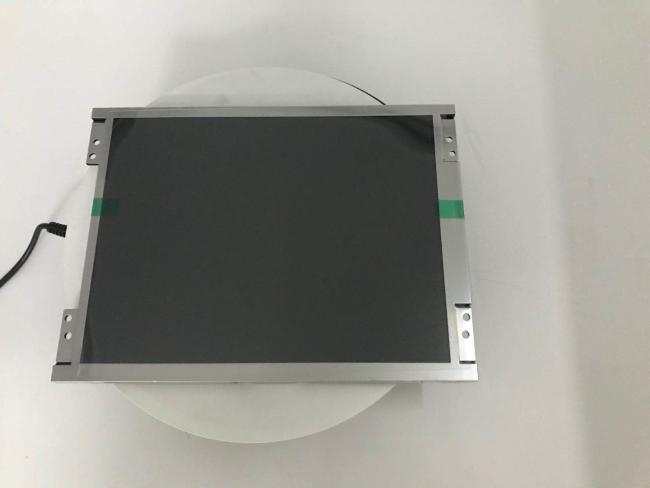

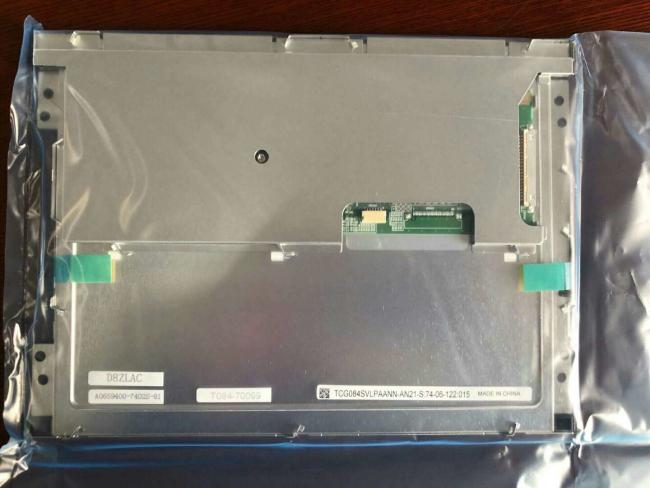

TCG084SVLQAPNN-AN20 Kyocera 8.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2day
Brand: Kyocera
Product Description

Kyocera TCG084SVLQAPNN-AN20 Application Details

Basic Info :
Panel Brand

TCG084SVLQAPNN-AN20Panel Model
Diagonal Size
8.4"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating



Kyocera TCG084SVLQAPNN-AN20 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×600, SVGA
Dot Pitch
0.071×0.213 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.213×0.213 mm (H×V) [119PPI]
Mechanical Size :
Display Area
170.4×127.8 mm (H×V)
Bezel Area
174.4×131.8 mm (H×V)
Outline Dim.
199.5×147.4 mm (H×V)
Outline Depth
9.0 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes
Other Features :
Weight
315g
Surface
Antiglare



Kyocera TCG084SVLQAPNN-AN20 Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
AWV, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
18/12 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.325
Color Numbers
16.2M (6-bit + FRC)
Color Temperature
6685K
Uniformity
-
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
70% coverage
Adobe RGB
53% coverage
DCI-P3
52% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG084SVLQAPNN-AN20 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No



Kyocera TCG084SVLQAPNN-AN20 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
70K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
-
Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
330/500mA (Typ./Max.)



Kyocera TCG084SVLQAPNN-AN20 Interface Detail

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
270/330mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
FI-X30SSLA-HF
1.0 mm
30 pins
1 pcs
