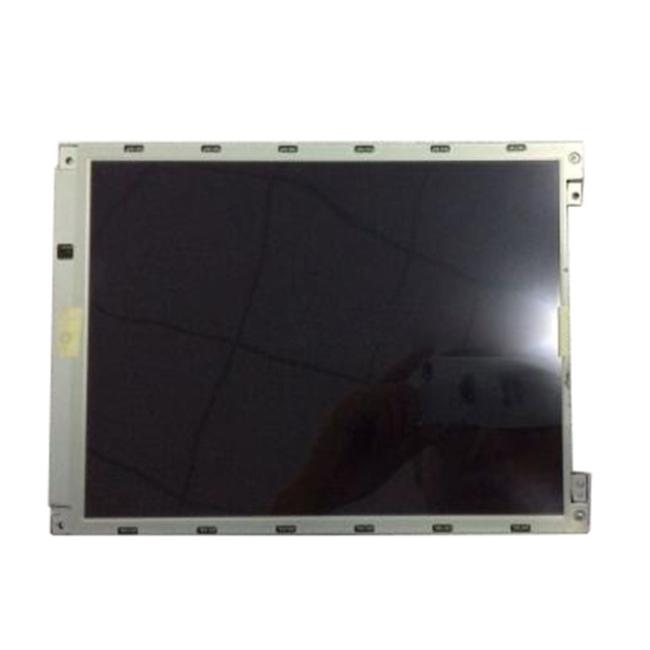

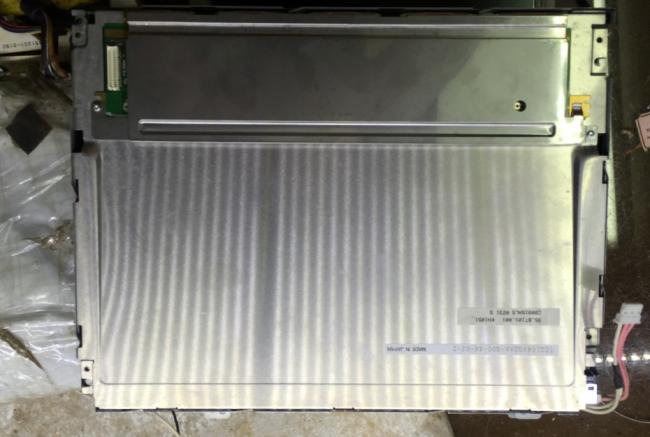

TCG104SVLQAPNN-AN20 Kyocera 10.4INCH LCM 800×600RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG104SVLQAPNN-AN20 Application Details
| Basic Detail : | Manufacturer | Model Name | TCG104SVLQAPNN-AN20 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS |
Kyocera TCG104SVLQAPNN-AN20 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 18/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AWV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.315; Wy:0.340 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6304K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Kyocera TCG104SVLQAPNN-AN20 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 240.7(W)×180.2(H) mm |
| Bezel Opening | 215.4(W)×162.2(H) mm | Overall Depth | 9.0 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) | |||
| Other Detail : | Mass | 470g (Typ.) | Surface | Antiglare |
Kyocera TCG104SVLQAPNN-AN20 Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
Kyocera TCG104SVLQAPNN-AN20 Interface Details
| Signal Electrical : | Input Current | 250/300mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-X30SSLA-HF | 1 pcs | 1.0 mm | 30 pins | ||
Kyocera TCG104SVLQAPNN-AN20 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 380/580mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
