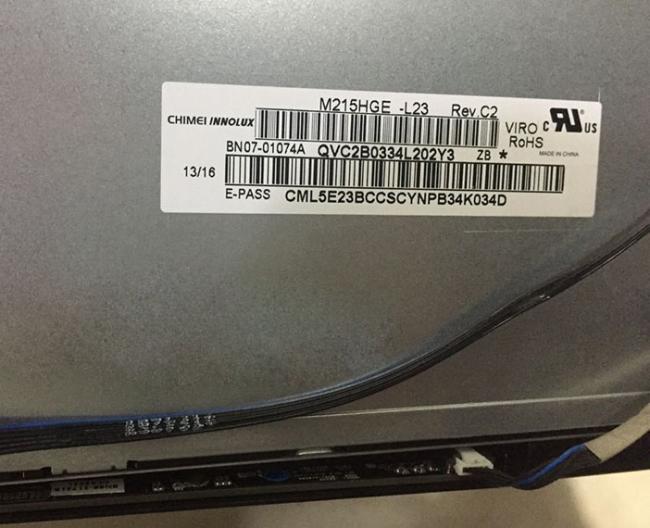

1920×1080 102PPI 200nits TFT LCD Panel M215HGE-L23 INNOLUX CHIMEI
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Chimei Innolux M215HGE-L23 Application Details
| Basic Detail : | Manufacturer | Model Name | M215HGE-L23 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 21.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
Chimei Innolux M215HGE-L23 Optical Details
| Basic Information : | Luminance | 200 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 1.5/3.5 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux M215HGE-L23 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.08275×0.24825 mm | Pixel Pitch(W×H) | 0.24825×0.24825 mm [102PPI] | |
| Physical Size : | Active Viewing | 476.64(W)×268.11(H) mm | Overall Dim. | 495.6(W)×292.2(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm | Overall Depth | 8.3/11.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on up, down bezel | |||
| Other Detail : | Mass | 2.10/2.16Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
Chimei Innolux M215HGE-L23 Interface Details
| Signal Electrical : | Input Current | 1.2/1.4A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.0/7.7W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| FCN | WF13-422-3033 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
Chimei Innolux M215HGE-L23 Lightting Details
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Right side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 11S4P | Life | 40K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 65/70mA (Typ./Max.) | Input Voltage | 34.1/37.5V (Typ./Max.) | ||
| Consumption | 8.87/11.25W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| FCN | WM13-406-063N | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
Chimei Innolux M215HGE-L23 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 13 pcs / box | 567×301×376 mm | 27.525 Kgs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
