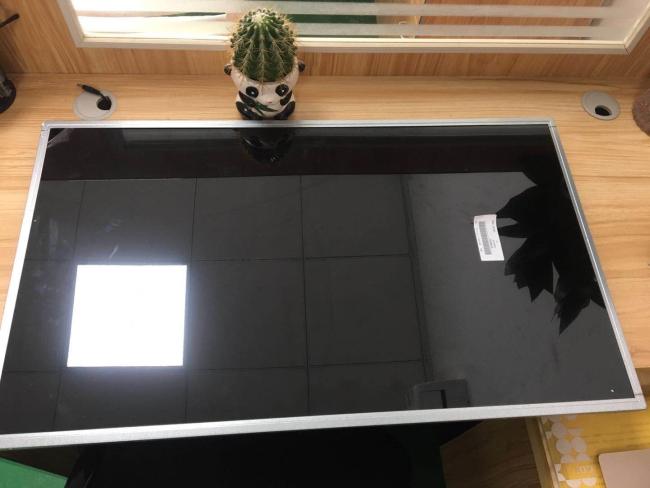

FHD 102PPI 21.5" 250nits TFT LCD Module Innolux M215HJJ-L30 Rev.C3
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux M215HJJ-L30 Rev.C3 Application Details
| Basic Information : | Brand | Model | M215HJJ-L30 Rev.C3 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 21.5" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
Innolux M215HJJ-L30 Rev.C3 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.08265×0.24795 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.24795×0.24795 (H×V) [102PPI] | |
| Mechanical Size : | Active Area(mm) | 476.064(H) × 267.786(V) | Bezel Area(mm) | 479.84(H) × 271.3(V) |
| Outline Dim.(mm) | 495.6(H) × 292.2(V) | Depth(mm) | 8.3/11.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on up, down bezel | |||
| Other Spec : | Weight | 1.91/2.10Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Innolux M215HJJ-L30 Rev.C3 Optical Details
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 3000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | MVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 20/5 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux M215HJJ-L30 Rev.C3 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 768/910mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.8/5.6W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| FCN | WF13-422-3033 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |
Innolux M215HJJ-L30 Rev.C3 Backlight Details
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Left side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4 strings | Life Time | 40K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 25.6/28.0V (Typ./Max.) | Current Supply | 120/125mA (Typ./Max.) | ||
| Consumption | 12.29/13.44W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| FCN | WM13-406-063N | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
