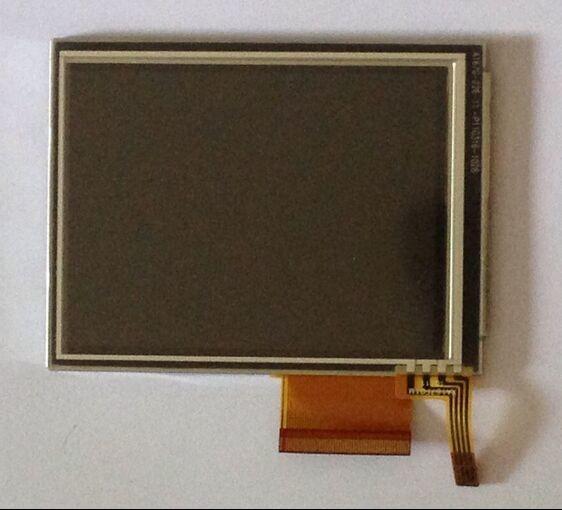

LQ035Q7DH07 Sharp 3.5" LCM 240×320RGB 250cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ035 Series LQ035Q7DH08 LQ035Q7DH07 LQ035Q7DH06 LQ035Q7DH05 LQ035Q7DH04
Sharp LQ035Q7DH07 Mechanical Details
| Pixel Features : | Resolution | 240(RGB)×320, QVGA | Dot Pitch(mm) | 0.0745×0.2235 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2235×0.2235 (H×V) [113PPI] | |
| Mechanical Size : | Active Area(mm) | 53.64(H) × 71.52(V) | Bezel Area(mm) | 57.4(H) × 75.2(V) |
| Outline Dim.(mm) | 65(H) × 86.2(V) | Depth(mm) | 3.2±0.2 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 3:4 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 34.0g (Typ.) | Treatment | Hard coating (3H) |
Sharp LQ035Q7DH07 Interface Details
| Signal Electrical : | Voltage Supply | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) | Current Supply | 3.0/1.5/0.05/-0.05mA (Typ.)(ISHA/ISHD/IDD/IEE) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | ||||
Sharp LQ035Q7DH07 Optical Details
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 80:1 (Typ.) (Transmissive) 3:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) | Display Mode | TN, Normally White, Transflective | |
| Best View on | 6 o'clock | Response(ms) | 30/50 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.330 | Display Colors | 262K (6-bit) |
| Color Temperature | 7203K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 26% | sRGB | 35% coverage |
| Adobe RGB | 27% coverage | DCI-P3 | 26% coverage | |
| Rec.2020 | 19% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Type | - | Reflectance | 2.5/4.0% (Min./Typ.) |
Sharp LQ035Q7DH07 Backlight Details
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S1P | Life Time | 5K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 19.2/21.6V (Typ./Max.) | Current Supply | 20/22mA (Typ./Max.) | ||
| Consumption | 384mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
