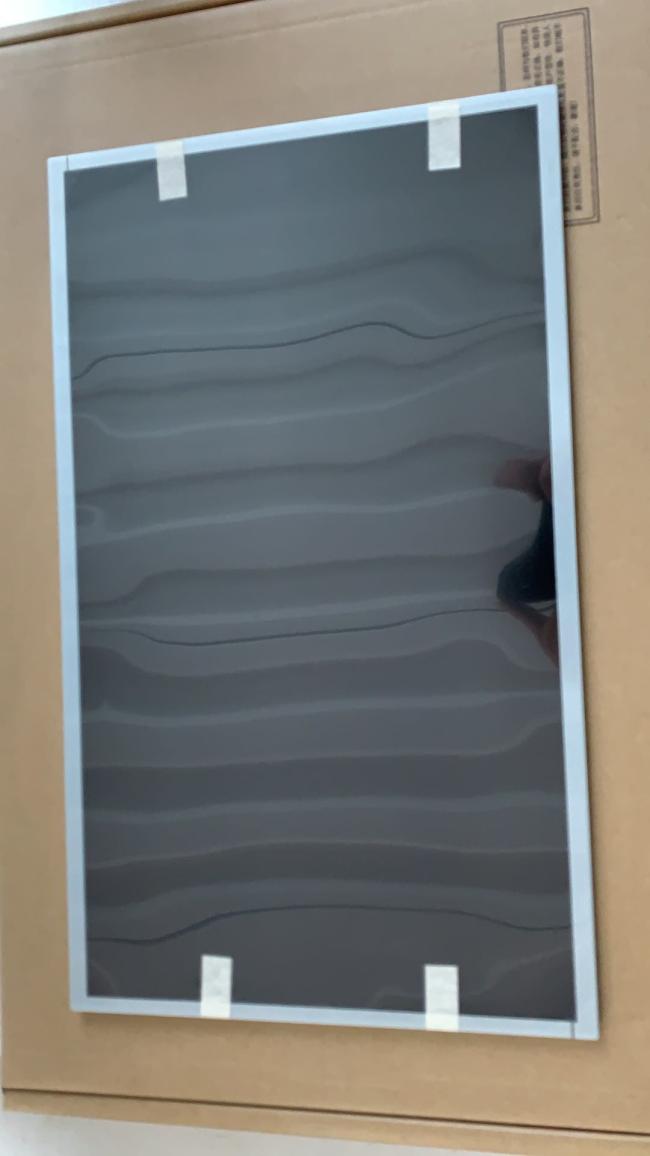

CHIMEI Innolux 23.6" 1920×1080 300nits Industrial Lcd Display M236HGE-L20

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: INNOLUX
Product Description

Chimei Innolux M236HGE-L20 Application Details

Basic Detail :
Manufacturer

M236HGE-L20Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
23.6 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS

-Vibration Level



Chimei Innolux M236HGE-L20 Optical Details

Basic Detail :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
1.5/3.5 (Typ.)(Tr/Td) ms
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.43 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Chimei Innolux M236HGE-L20 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0905×0.2715 mm
Pixel Pitch(W×H)
0.2715×0.2715 mm [93PPI]
Physical Size :
Active Viewing
521.28(W)×293.22(H) mm
Overall Dim.
544.8(W)×320.5(H) mm
Bezel Opening
525.22(W)×297.22(H) mm
Overall Depth
11.0±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Normal bezel
Fixation :
Side mounting holes (4-M3) on up, down bezel
Other Detail :
Mass
2.31/2.41Kgs (Typ./Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)



Chimei Innolux M236HGE-L20 Interface Detail

Signal Electrical :
Input Current
1.04/1.20A (Typ./Max.)
Input Voltage
5.0V (Typ.)
Consumption
5.2/6.0W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
P-TWO
187098-30091
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A



Chimei Innolux M236HGE-L20 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
4 strings
Position
Edge light type (Right side)
Exchange
-
Lamp Shape
4 strings
Lamp Life
40K(Min.) (Hours)
Lamp Electrical :
Input Voltage
46.5/51.0V (Typ./Max.)
Input Current
65/69mA (Typ./Max.)
Consumption
12.09/13.26W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
CviLux
CI1406M1HRK-NH
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
