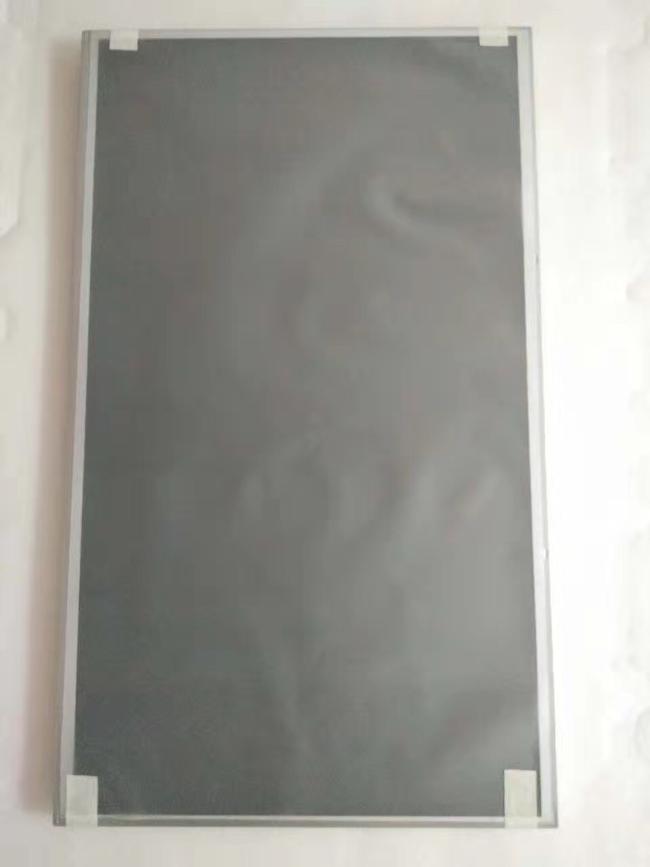

23.6" 1920(RGB)×1080 250cd/m2 TFT LCD Panel Innolux M236HJJ-L30
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux M236HJJ-L30 Application Details
| Basic Info : | Panel Brand | Panel Model | M236HJJ-L30 | |
|---|---|---|---|---|
| Diagonal Size | 23.6" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | - |
Innolux M236HJJ-L30 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0905×0.2715 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2715×0.2715 mm (H×V) [93PPI] | |
| Mechanical Size : | Display Area | 521.28×293.22 mm (H×V) | Bezel Area | 525.22×297.22 mm (H×V) |
| Outline Dim. | 544.8×320.5 mm (H×V) | Outline Depth | 8.3/11.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Side mounting holes (4-M3) on up, down bezel | |||
| Other Features : | Weight | 2.31±0.11Kgs | Surface | Antiglare (Haze 3%), Hard coating (3H) |
Innolux M236HJJ-L30 Optical Details
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 3000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | Super MVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 10 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33/1.39 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux M236HJJ-L30 Backlight Details
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4 strings | Position | Edge light type (Left side) | |
| Lamp Electrical : | Voltage Input | 31.0/35.0V (Typ./Max.) | Current Input | 95.0/110.0mA (Typ./Max.) | ||
| Consumption | 11.78/13.3W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| FCN | WM13-406-063N | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
Innolux M236HJJ-L30 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 1.18/1.4A (Typ./Max.) | ||
| Consumption | 5.7/7.0W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| P-TWO | 187098-30091 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
Innolux M236HJJ-L30 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 11 pcs / box | 33 Kgs | 620×348×430 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
