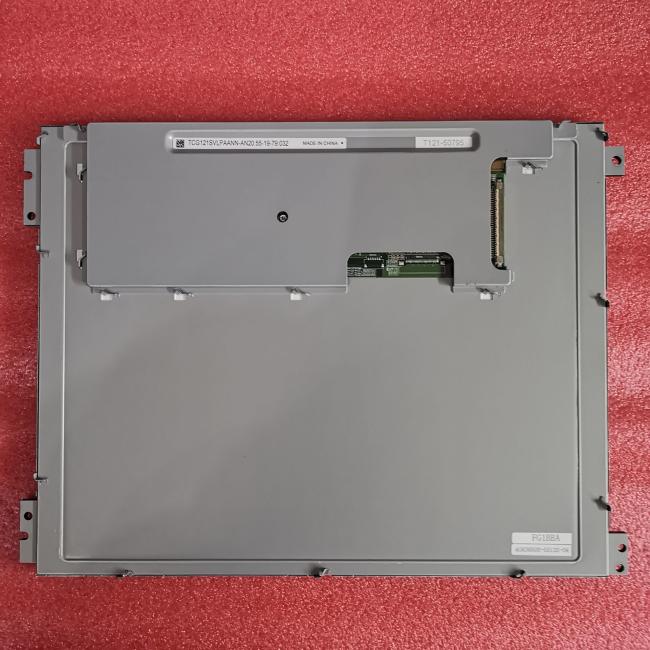

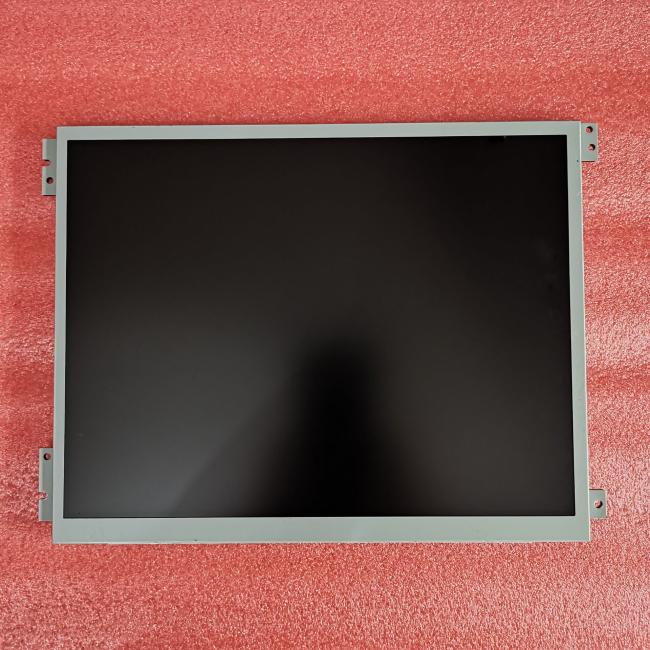

TCG121SVLQEPNN-AN20 Kyocera 12.1INCH LCM 800×600RG 450NITS WLED LVDS INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG121SVLQEPNN-AN20 Application Details
| Basic Info : | Panel Brand | Panel Model | TCG121SVLQEPNN-AN20 | |
|---|---|---|---|---|
| Diagonal Size | 12.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - |
Kyocera TCG121SVLQEPNN-AN20 Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.1025×0.3075 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3075×0.3075 mm (H×V) [82PPI] | |
| Mechanical Size : | Display Area | 246×184.5 mm (H×V) | Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dim. | 265×207.7 mm (H×V) | Outline Depth | 9.6±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (6-M2) on left, right bezel | |||
| Other Features : | Weight | 670g | Surface | Antiglare |
Kyocera TCG121SVLQEPNN-AN20 Optical Details
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 650:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | AWV, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 18/12 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.315; Wy:0.340 | Color Numbers | 16.2M (6-bit + FRC) |
| Color Temperature | 6304K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Kyocera TCG121SVLQEPNN-AN20 Electronics Details
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
Kyocera TCG121SVLQEPNN-AN20 Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 70K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Position | - | Lamp Driver | With LED Driver | |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 500/630mA (Typ./Max.) | ||
Kyocera TCG121SVLQEPNN-AN20 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 290/370mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-X30SSLA-HF | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-272A | |
