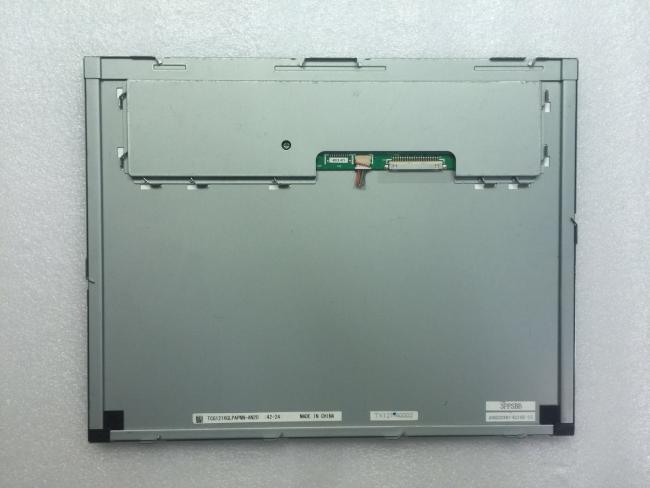

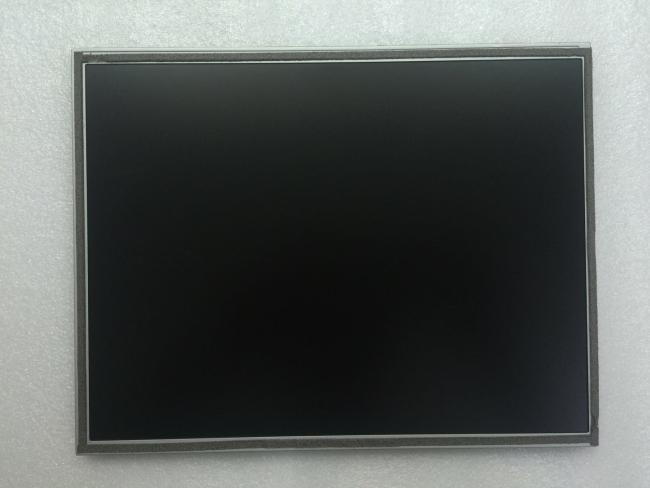

TCG121WXLPAPNN-AN20-SA Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG121WXLPAPNN-AN20-SA Application Details
| Basic Info : | Panel Brand | Panel Model | TCG121WXLPAPNN-AN20-SA | |
|---|---|---|---|---|
| Diagonal Size | 12.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - |
Kyocera TCG121WXLPAPNN-AN20-SA Mechanical Details
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
| Mechanical Size : | Display Area | 261.12×163.2 mm (H×V) | Bezel Area | 264.1×166.2 mm (H×V) |
| Outline Dim. | 277.7×182.5 mm (H×V) | Outline Depth | 9.8 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 680g (Typ.) | Surface | Antiglare |
Kyocera TCG121WXLPAPNN-AN20-SA Optical Details
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 750:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | AWV, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 18/12 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.315; Wy:0.345 | Color Numbers | 16.2M (6-bit + FRC) |
| Color Temperature | 6274K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Kyocera TCG121WXLPAPNN-AN20-SA Electronics Details
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
Kyocera TCG121WXLPAPNN-AN20-SA Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM08B-SHLS-G-TF(LF)(SN) | 1.0 mm | 8 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 460/600mA (Typ./Max.) | ||
Kyocera TCG121WXLPAPNN-AN20-SA Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 375/490mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF19L-20P-1H(54) | 1.0 mm | 20 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
