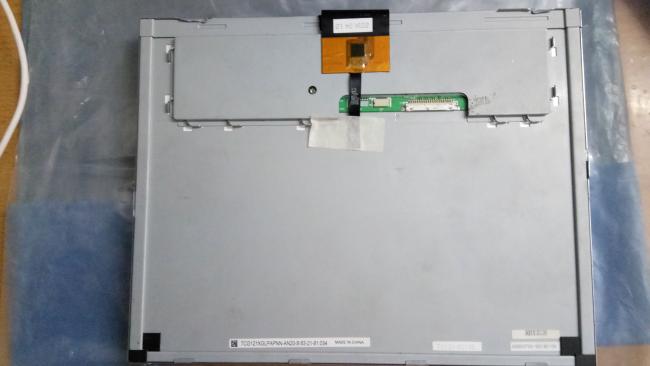

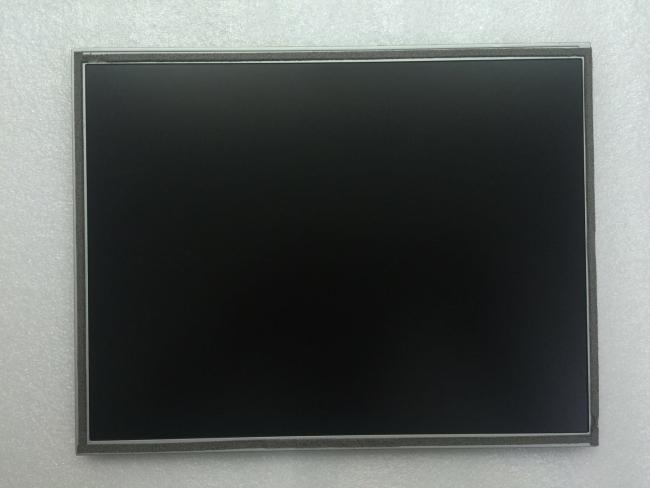

TCG121XGLPAPNN-AN20-S Kyocera 12.1INCH LCM 1024×768RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG121XGLPAPNN-AN20-S Application Details
| Basic Detail : | Manufacturer | Model Name | TCG121XGLPAPNN-AN20-S | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 12.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS |
Kyocera TCG121XGLPAPNN-AN20-S Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 750 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 18/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AWV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 7203K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Kyocera TCG121XGLPAPNN-AN20-S Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.080×0.240 mm | Pixel Pitch(W×H) | 0.240×0.240 mm [105PPI] | |
| Physical Size : | Active Viewing | 245.76(W)×184.32(H) mm | Overall Dim. | 260.5(W)×203.4(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm | Overall Depth | 10.3±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (6-M3) on left, right bezel | |||
| Other Detail : | Mass | 670g | Surface | Antiglare |
Kyocera TCG121XGLPAPNN-AN20-S Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
Kyocera TCG121XGLPAPNN-AN20-S Interface Details
| Signal Electrical : | Input Current | 300/390mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20186-020E-11F | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H | |
Kyocera TCG121XGLPAPNN-AN20-S Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHLS-G-TF(LF)(SN) | 1 pcs | 1.0 mm | 6 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 480/560mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
