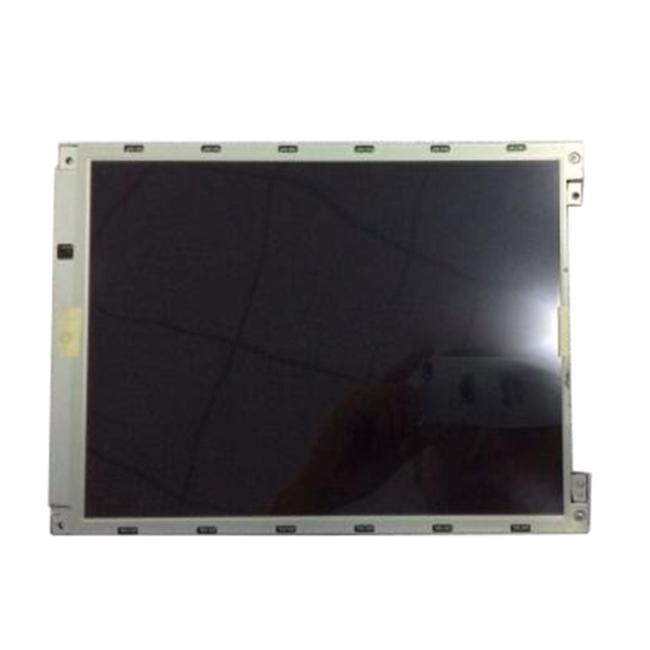

TCG121XGLPAPNN-AN20-SA Kyocera 12.1INCH LCM 1024×768RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG121XGLPAPNN-AN20-SA Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TCG121XGLPAPNN-AN20-SA | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 80 °C | -30 ~ 80 °C | - |
Kyocera TCG121XGLPAPNN-AN20-SA Mechanical Features
| Panel Size : | 12.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.080×0.240 mm | 0.240×0.240 mm [105PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 245.76×184.32 mm | 249.0×187.5 mm | 260.5×203.4 mm | 10.3±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (6-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 670g | Antiglare | ||
Kyocera TCG121XGLPAPNN-AN20-SA Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | AWV, Normally Black, Transmissive | 750:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 18/12 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7203K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.300; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 48% | 67% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Kyocera TCG121XGLPAPNN-AN20-SA Electronics Features
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
Kyocera TCG121XGLPAPNN-AN20-SA Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 300/390mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20186-020E-11F | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H | |
Kyocera TCG121XGLPAPNN-AN20-SA Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM06B-SHLS-G-TF(LF)(SN) | 1 pcs | 1.0 mm | 6 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 480/560mA (Typ./Max.) | 12.0V (Typ.) | - | ||||
