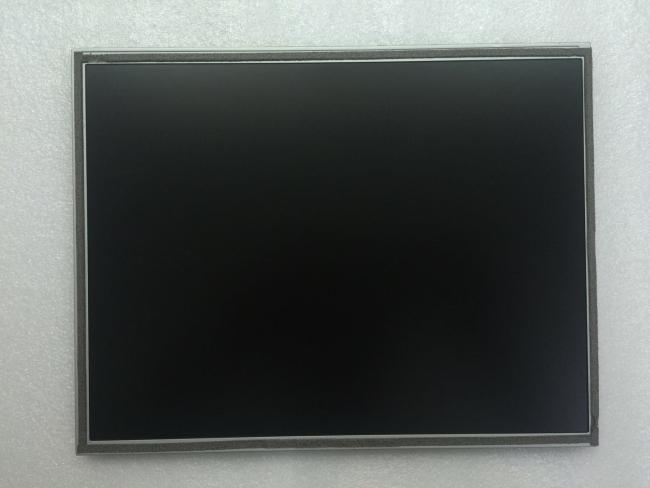

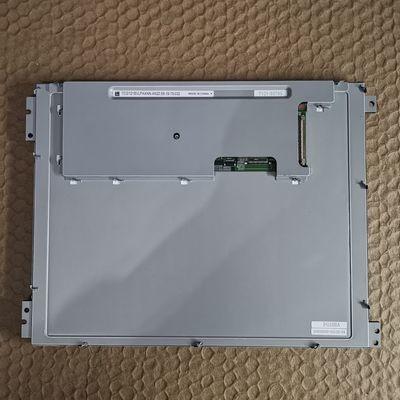

TCG121XGLPBPNN-AN40 Kyocera 12.1INCH LCM 1024×768RGB 1200NITS WLED LVDS INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG121XGLPBPNN-AN40 Application Details
| Basic Information : | Brand | Model | TCG121XGLPBPNN-AN40 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 12.1" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -30 ~~ 80 °C |
| RoHS | Vibration | - |
Kyocera TCG121XGLPBPNN-AN40 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.080×0.240 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.240×0.240 (H×V) [105PPI] | |
| Mechanical Size : | Active Area(mm) | 245.76(H) × 184.32(V) | Bezel Area(mm) | 249.0(H) × 187.5(V) |
| Outline Dim.(mm) | 260.5(H) × 203(V) | Depth(mm) | 9.1/10.9 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (6-M3) on left, right bezel | |||
| Other Spec : | Weight | 555g | Treatment | Antiglare |
Kyocera TCG121XGLPBPNN-AN40 Optical Details
| Basic Information : | Luminance(cd/m²) | 1200 (Typ.) | Contrast Ratio | 750:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AWV, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 18/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.320; Y:0.345 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6043K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
Kyocera TCG121XGLPBPNN-AN40 Electronics Details
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
Kyocera TCG121XGLPBPNN-AN40 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 300/390mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20186-020E-11F | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-010H | |
Kyocera TCG121XGLPBPNN-AN40 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM06B-SHLS-G-TF(LF)(SN) | 1 pcs | 6 pins | 1.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.9/1.1A (Typ./Max.) | ||
