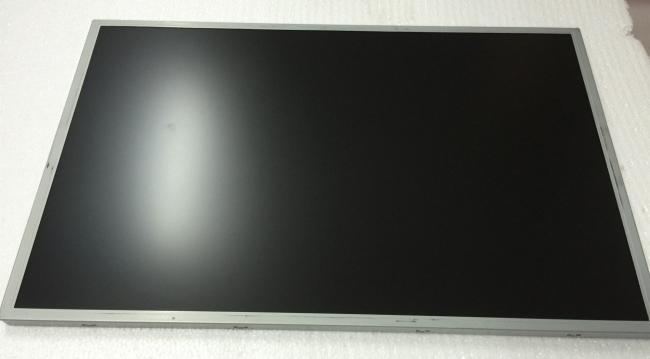

M260J1-L07 CMO 25.5" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
CMO
Product Description
CMO M260J1-L07 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| M260J1-L07 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C | - | ||
| Used For : | ||||
| Specific Features : |
|
|||
| Remarks : | TCO’03 compliance | |||
CMO M260J1-L07 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 88/88/88/88 (Typ.)(CR≥10) | 6 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | Super MVA, Normally Black, Transmissive | 1500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 97% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : |
1.50/1.60 (Typ./Max.)(13 points)
|
||
CMO M260J1-L07 Mechanical Features
| Panel Size : | 25.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1200 [WUXGA] | RGB Vertical Stripe | 0.2865×0.2865 [88PPI] | 0.0955×0.2865 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 550.08(H) × 343.8(V) | 554.1(H) × 347.8(V) | 582.4(H) × 375.6(V) | 41.4±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | Normal bezel | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 3.45Kgs (Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
CMO M260J1-L07 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | 16 pcs | Straight | 50K(Min.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 1036±104V | 5.0±0.5mA | 83.0W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 48/55/70KHz (Min./Typ./Max.) | 1620/1920V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With Inverter | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | 20022WR-14AML | 2.0 mm | 14 pins | 1 pcs | ||
| ACES | 88357-0800N | 1.0 mm | 8 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 24.0±2.4V | 1.2/4.0A (Min./Max.) | |||||
CMO M260J1-L07 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 2.1A (Typ.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (2 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STARCONN | 093G30-B0001A | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-150A | |
CMO M260J1-L07 Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 5 pcs / box | 17.5 Kgs | 680×400×360 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
