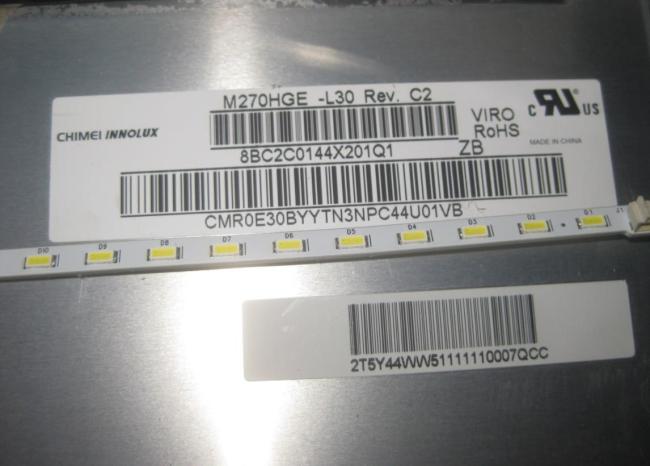

M270HGE-L30 CHIMEI Innolux 27.0" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: INNOLUX
Product Description

Chimei Innolux M270HGE-L30 Application Details

Basic Information :
Brand

M270HGE-L30Model
Type
a-Si TFT-LCD , LCM
Used For

27.0 inchScreen Size
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

-Vibration







Chimei Innolux M270HGE-L30 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.1038×0.3114 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.3114×0.3114 (H×V) [81PPI]
Mechanical Size :
Active Area(mm)
597.888(H) × 336.312(V)
Bezel Area(mm)
603.9(H) × 342.3(V)
Outline Dim.(mm)
630(H) × 368.2(V)
Depth(mm)
10.3/14.6 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Other Spec :
Weight
2.53±0.07Kgs
Treatment
Antiglare (Haze 25%), Hard coating (3H)



Chimei Innolux M270HGE-L30 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
1.5/3.5 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.42 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
96% coverage
Adobe RGB
74% coverage
DCI-P3
76% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Chimei Innolux M270HGE-L30 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
1.08/1.22A (Typ./Max.)
Consumption
5.4/6.1W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
P-TWO
187114-30091
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A



Chimei Innolux M270HGE-L30 Backlight Details

Backlight Features :
Type
WLED
Quantity
4 strings
Position
Edge light type (Right side)
Replacement
-
Shape
4 strings
Life Time
40K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
55.8/60.3V (Typ./Max.)
Current Supply
85/89mA (Typ./Max.)
Consumption
18.97/20.5W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
CviLux
CI1406M1HRK-NH
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



Chimei Innolux M270HGE-L30 Packing Details

Package Box : Quantity Weight Box Size
10 pcs / box 29.7 Kgs 713×429×453 mm (L×W×H)



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
