M280DGJ-L30 Innolux 28.0" 3840(RGB)×2160 300 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux M280DGJ-L30 Application Details
| Basic Info : | Panel Brand | Panel Model | M280DGJ-L30 | |
|---|---|---|---|---|
| Diagonal Size | 28.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | - |
Innolux M280DGJ-L30 Mechanical Details
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.0539×0.158 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1617×0.158 mm (H×V) [157PPI] | |
| Mechanical Size : | Display Area | 620.93×341.28 mm (H×V) | Bezel Area | 626.93×347.28 mm (H×V) |
| Outline Dim. | 648.9×369.3 mm (H×V) | Outline Depth | 12.13/20.85 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Other Features : | Weight | 2.91/3.10Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
Innolux M280DGJ-L30 Optical Details
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 1.5/3.5 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (10-bit) |
| Color Temperature | 6485K | White Uniformity | 1.42 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux M280DGJ-L30 Backlight Details
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4 strings | Position | Edge light type (Left side) | |
| Lamp Electrical : | Voltage Input | 37.8/40.2V (Typ./Max.) | Current Input | 150±9mA | ||
| Consumption | 22.68/24.12W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| FCN | WM13-406-063N | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
Innolux M280DGJ-L30 Interface Details
| Signal Systerm : | V-by-One 8 lane | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 0.6/0.73A (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| FCN | WF23-402-5133 | 0.5 mm | 51 pins | 1 pcs | ||

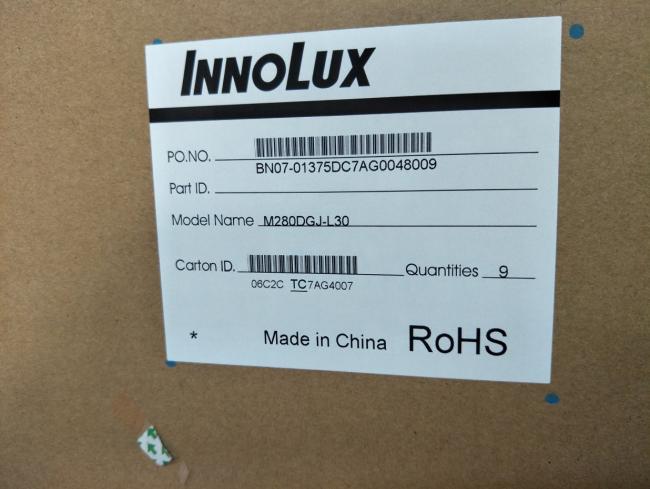

Innolux M280DGJ-L30 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 9 pcs / box | 34 Kgs | 713×429×453 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
