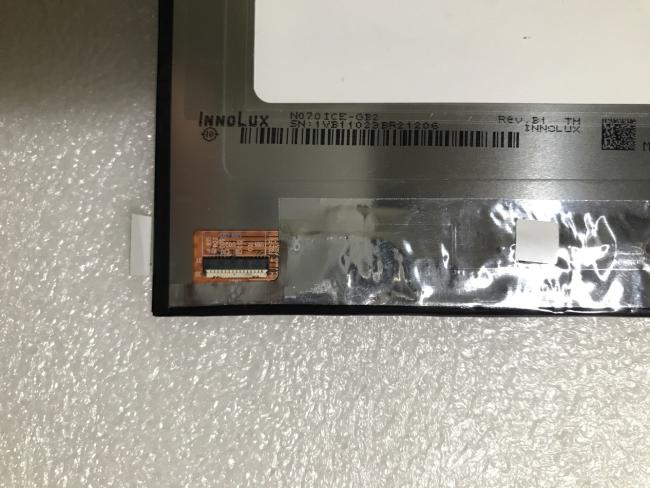

N070ICE-GB2 Innolux 7.0" 800(RGB)×1280 450 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux N070ICE-GB2 Application Details
| Basic Info : | Panel Brand | Panel Model | N070ICE-GB2 | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
Innolux N070ICE-GB2 Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)×1280 [WXGA] | Dot Pitch | 0.03925×0.11775 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.11775×0.11775 mm (H×V) [215PPI] | |
| Mechanical Size : | Display Area | 94.2×150.72 mm (H×V) | Bezel Area | 97.35×153.82 mm (H×V) |
| Outline Dim. | 103.5×162.15 mm (H×V) | Outline Depth | 2.0/3.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 10:16 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 60.0g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
Innolux N070ICE-GB2 Optical Details
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14/11 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.49 (Max.)(5/13 points) |
Innolux N070ICE-GB2 Backlight Details
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S3P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 15.6/18.0/19.2V (Min./Typ./Max.) | Current Input | 60mA (Typ.) | ||
| Consumption | 1.08/1.2W (Typ./Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
Innolux N070ICE-GB2 Interface Details
| Signal Systerm : | MIPI (4 data lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 1.8/3.3V (Typ.)(VDDI/VCI) | Current Input | 35/65mA (Typ.)(IDDI/ICI) | ||
| Consumption | 0.4W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| Panasonic | AYF333135 | 0.3 mm | 31 pins | 1 pcs | ||
Innolux N070ICE-GB2 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 60 pcs / box |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
