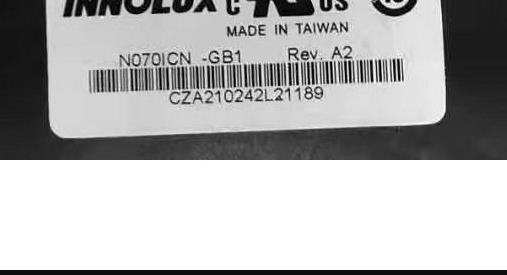

N070ICN-GB1 Innolux 7.0" 800(RGB)×1280 300 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux N070ICN-GB1 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| N070ICN-GB1 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C |
Innolux N070ICN-GB1 Mechanical Features
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×1280, WXGA | RGB Vertical Stripe | 0.03925×0.11775 mm | 0.11775×0.11775 mm [215PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 94.2×150.72 mm | 97.35×153.82 mm | 105.62×163.27 mm | 2.7/4.56 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 10:16 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 95.0g (Max.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Holes & Brackets : | Without | |||
Innolux N070ICN-GB1 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 11/9 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6551K | 16.7M (8-bit) | X:0.310; Y:0.340 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 60% | 85% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 63% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
Innolux N070ICN-GB1 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 15K(Min.) | 3S6P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 8.4/9/9.9V (Min./Typ./Max.) | 108mA (Typ.) | 0.98/1.07W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | ||||||
Innolux N070ICN-GB1 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/3.3V (Typ.)(VDDI/VCI) | 35/65mA (Typ.)(IDDI/ICI) | 0.4W (Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (4 data lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Panasonic | AYF333135 | 1 pcs | 31 pins | 0.3 mm | ||
Innolux N070ICN-GB1 Packing Features
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 60 pcs / box | - | 435×350×275 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
