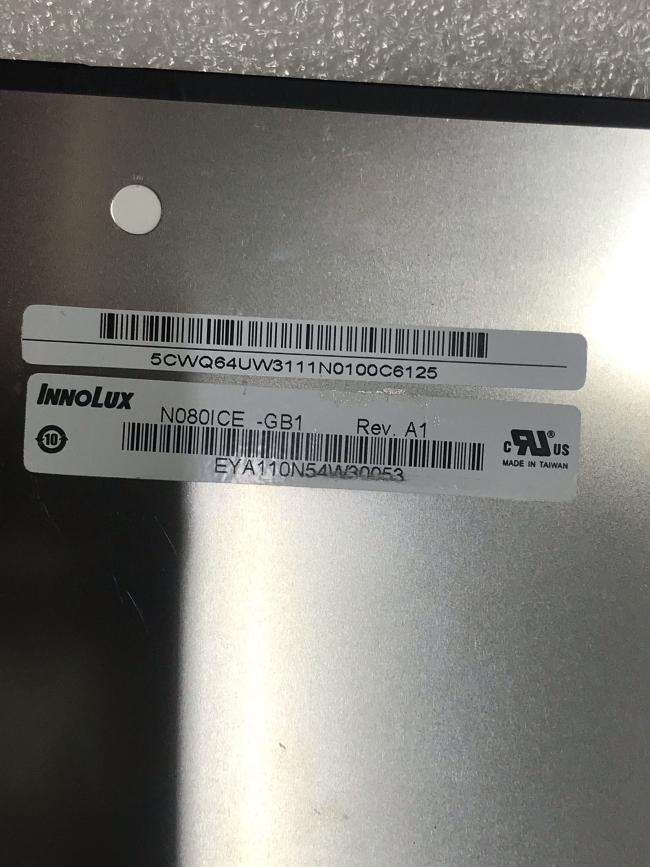

N080ICE-GB1 Innolux 8.0" 800(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux N080ICE-GB1 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| N080ICE-GB1 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C |
Innolux N080ICE-GB1 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Tf) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AAS, Normally Black, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 61% | 82% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 63% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.49 (Max.)(5/13 points) | ||
Innolux N080ICE-GB1 Mechanical Features
| Panel Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×1280 [WXGA] | RGB Vertical Stripe | 0.13455×0.13455 [188PPI] | 0.04485×0.13455 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 107.64(H) × 172.224(V) | - | 120.65(H) × 187.64(V) | 2.9/5.1 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 10:16 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 99.0g (Max.) | - | Hard coating (3H), Antireflection | ||
Innolux N080ICE-GB1 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 9.0±0.6V | 120mA (Typ.) | 1.08/1.16W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | |||||
Innolux N080ICE-GB1 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/3.6V (Typ.)(VDD/VCI) | 45/50mA (Typ.)(IDD/ICI) | 0.3W (Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (4 data lanes) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 31 pins | 1 pcs | |||||
Innolux N080ICE-GB1 Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 30 pcs / box | - | 435×350×275 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
