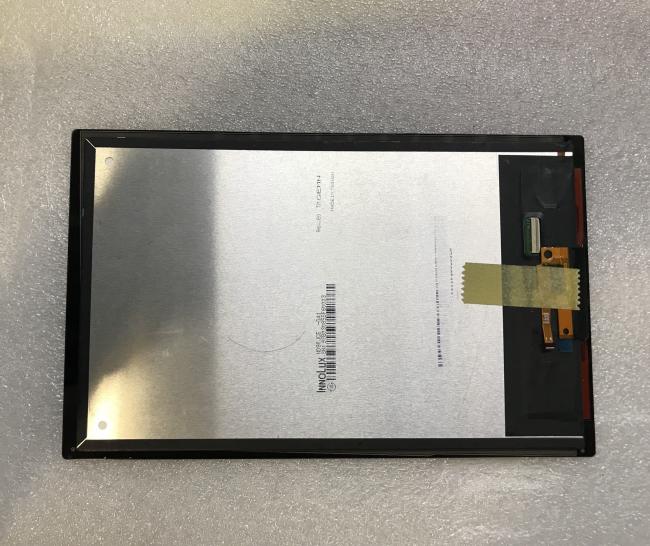

N080JCE-G41 Innolux 8.0" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux N080JCE-G41 Application Details
| Basic Detail : | Manufacturer | Model Name | N080JCE-G41 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 8.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
Innolux N080JCE-G41 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | 1.25/1.50 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 85% coverage |
| Adobe RGB | 66% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux N080JCE-G41 Mechanical Details
| Pixel Features : | Number of Pixel | 1200(RGB)×1920 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0299×0.0897 mm | Pixel Pitch(W×H) | 0.0897×0.0897 mm [283PPI] | |
| Physical Size : | Active Viewing | 107.64(W)×172.224(H) mm | Overall Dim. | 114.6(W)×184.6(H) mm |
| Bezel Opening | - | Overall Depth | 2.15/3.65 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 10:16 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 80.0g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
Innolux N080JCE-G41 Interface Details
| Signal Electrical : | Input Current | 116/120mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.55W (Max.) | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20584-045E-01 | 1 pcs | 0.3 mm | 45 pins | ||
Innolux N080JCE-G41 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 66mA (Typ.) | Input Voltage | 23V (Max.) | ||
| Consumption | 1.5W (Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
