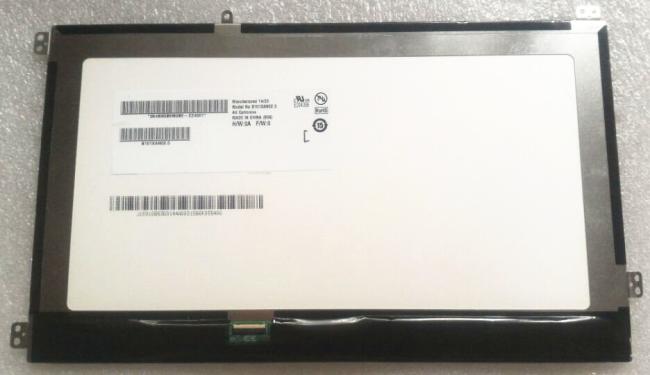

N101BCG-GK1 CHIMEI Innolux 10.0" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Chimei Innolux N101BCG-GK1 Application Details
| Basic Detail : | Manufacturer | Model Name | N101BCG-GK1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | RoHS |
Chimei Innolux N101BCG-GK1 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.18/1.25 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 70% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux N101BCG-GK1 Mechanical Details
| Pixel Features : | Number of Pixel | 1366(RGB)×768 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0543×0.1629 mm | Pixel Pitch(W×H) | 0.1629×0.1629 mm [155PPI] | |
| Physical Size : | Active Viewing | 222.52(W)×125.11(H) mm | Overall Dim. | 234.93(W)×139.17(H) mm |
| Bezel Opening | 226.12(W)×128.0(H) mm | Overall Depth | 2.3/4.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Face mounting holes on left, right, up slugs | |||
| Other Detail : | Mass | 130g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
Chimei Innolux N101BCG-GK1 Interface Details
| Signal Electrical : | Input Current | 103/133mA (Typ.)(IDD/ICore_VDD) | Input Voltage | 3.3/1.2V (Typ.)(VDD/Core_VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.5W (Max.) | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Panasonic | AYF333935 | 1 pcs | 0.3 mm | 39 pins | ||
Chimei Innolux N101BCG-GK1 Lightting Details
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S6P | Life | 12K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 18mA (Typ.) | Input Voltage | 18.6±0.6V | ||
| Consumption | 2.01/2.07W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
Chimei Innolux N101BCG-GK1 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 30 pcs / box | 435×350×275 mm | 7.2 Kgs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
