N116BGE-L42 CHIMEI Innolux 11.6" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Chimei Innolux N116BGE-L42 Application Features
| Basic Information : | Brand Name | Model Name 3 Compatible | Type | Model Alias |
|---|---|---|---|---|
| N116BGE-L42 | a-Si TFT-LCD , LCM | CMN1119 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
Chimei Innolux N116BGE-L42 Mechanical Features
| Screen Size : | 11.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.0625×0.1875 mm | 0.1875×0.1875 mm [135PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 256.125×144 mm | 259.125×146.8 mm | 278×168 mm | 3.2/3.4 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Flat (PCBA Flat, T3.4~4.0mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 205/215g (Typ./Max.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right brackets | |||
Chimei Innolux N116BGE-L42 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 45/45/20/45 (Typ.)(CR≥10) | 3/7 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.60 (Max.)(5/13 points) | ||
Chimei Innolux N116BGE-L42 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 12K(Min.) | - | - | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 25/29/30V (Min./Typ./Max.) | 49±2.45mA | 1.16/1.43/1.55W (Min./Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in panel signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 5.0/12.0/21.0V (Min./Typ./Max.) | 108/139/151mA (Min./Typ./Max.) | 1.81W (Max.) | ||||
Chimei Innolux N116BGE-L42 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 207/232mA (Typ./Max.) | 0.69W (Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6-bit) | Connector | |||||

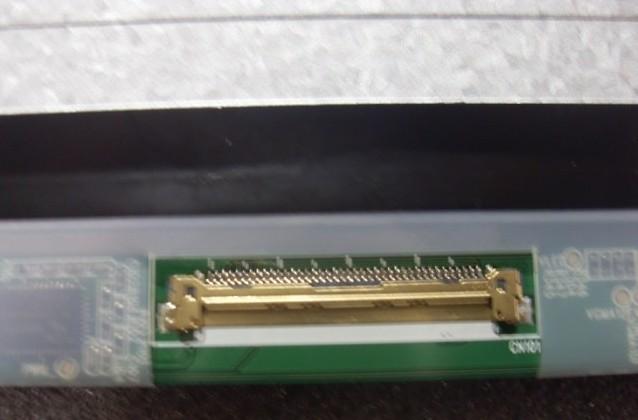

| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20455-040E-12 | 1 pcs | 40 pins | 0.5 mm | LVDS-40P1C6B-050A | |
Chimei Innolux N116BGE-L42 Packing Features
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 40 pcs / box | 11 Kgs | 489×382×275 mm (L×W×H) |
