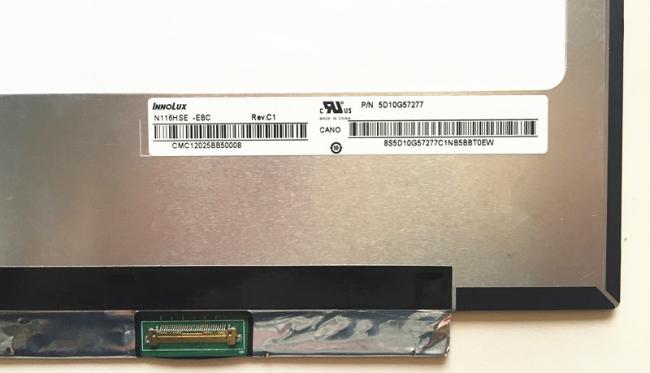

N116HSE-EBC Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux N116HSE-EBC Application Details
| Basic Information : | Brand | Model | N116HSE-EBC | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 11.6" | Alias | CMN1137 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
Innolux N116HSE-EBC Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0445×0.1335 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1335×0.1335 (H×V) [190PPI] | |
| Mechanical Size : | Active Area(mm) | 256.32(H) × 144.18(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 268(H) × 168(V) | Depth(mm) | 2.75/3.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 185/200g (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
Innolux N116HSE-EBC Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14/11 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Typ.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux N116HSE-EBC Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 183/210mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.69W (Max.) | |||||
| Signal Type : | eDP (2 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-12 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
Innolux N116HSE-EBC Backlight Details
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 28.6/31.9/33.0V (Min./Typ./Max.) | Current Supply | 46.8mA (Typ.) | ||
| Consumption | 1.49/1.54W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 130/152/159mA (Min./Typ./Max.) | ||
| Consumption | 1.91W (Max.) | |||||
Innolux N116HSE-EBC Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 30 pcs / box | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
