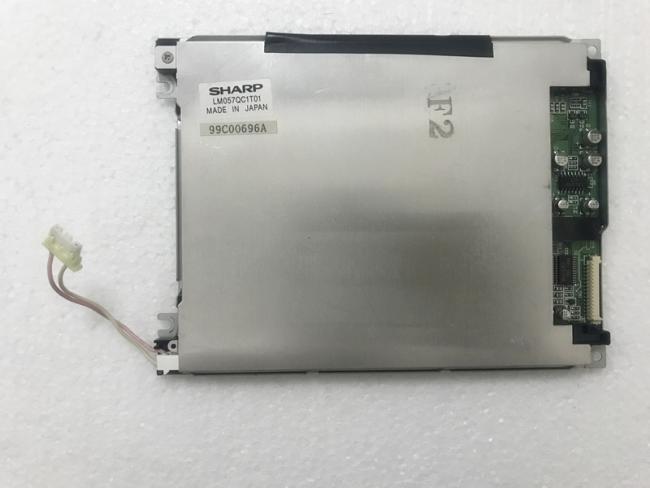

5.7" LCM 320×240RGB 180cd/m² LM057QC1T01 Sharp TFT LCD Display
Sharp LM057QC1T01 Mechanical Details
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.120×0.360 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 121.3(H) × 92.6(V) |
| Outline Dim.(mm) | 154.6(H) × 114.8(V) | Depth(mm) | 8.3±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.2, 2-R1.6) | |||
| Other Spec : | Weight | 200g (Typ.) | Treatment | - |
Sharp LM057QC1T01 Interface Details
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.)(VDD) | Current Supply | 1.5/3.0mA (Typ.)(3.3V/5.0V)(IDD) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel Data (8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| molex | 53261-1510 | 1 pcs | 15 pins | 1.25 mm | ||
Sharp LM057QC1T01 Optical Details
| Basic Information : | Luminance(cd/m²) | 180 (Typ.) | Contrast Ratio | 40:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 50/50/35/60 (Typ.)(CR≥2) | Display Mode | STN, Normally Black, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 450/100 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.320; Y:0.330 | Display Colors | Color |
| Color Temperature | 6116K | White Uniformity | - |
Sharp LM057QC1T01 Backlight Details
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 25K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 400V (Typ.) | Current Supply | 4.0/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 40/80KHz (Min./Max.) | Startup Voltage | 650/770V (Max.)(Ta=+25/0℃) | |||
| Consumption | 2.4W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
LM057QC1T01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 154.6(W)×114.8(H) mm, viewing area size of 121.3(W)×92.6(H) mm, net weight of 200g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM057QC1T01 can provides 180 cd/m² display brightness 40:1 transimissive contrast ratio, 50/50/35/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 450/100 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 25K hours, external backlight driver is additionally needed.
