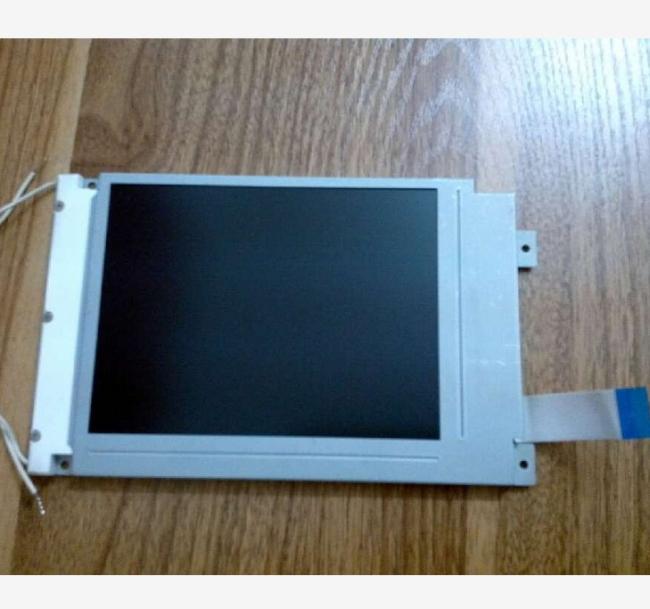

LM057QB1T10 LM057QB1T09 Sharp 5.7" LCM 320×240RGB 150cd/m² INDUSTRIAL LCD DISPLAY
Sharp LM057QB1T10 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LM057QB1T10 | FSTN-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -25 ~ 60 °C | - |
Sharp LM057QB1T10 Mechanical Features
| Panel Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320×240 [QVGA] | Rectangle | 0.360×0.360 [70PPI] | 0.360×0.360 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 115.17(H) × 86.37(V) | 121.0(H) × 91.6(V) | 166(H) × 109(V) | 7.5 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 160g (Typ.) | - | - | ||
Sharp LM057QB1T10 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 150 (Typ.) | 40/40/25/40 (Typ.)(CR≥2) | 190/210 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | STN, Black/White (Negative), Transmissive | 6 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | Monochrome | - |
Sharp LM057QB1T10 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1S6P | Parallel | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 3.4/3.9V (Typ./Max.) | 120mA (Typ.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLE-3PINS-ANC | |
Sharp LM057QB1T10 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 1.2/1.8mA (Typ./Max.) | 46/70mW (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel Data (4-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 1.25 mm | 12 pins | 1 pcs | ||||
LM057 Series LM057QB1T10 LM057QB1T09
LM057QB1T10 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.17(W)×86.37(H) mm, outline size of 166(W)×109(H)×7.5(D) mm, viewing area size of 121.0(W)×91.6(H) mm, net weight of 160g (Typ.). As a STN, Black/White (Negative), Transmissive LCM product, LM057QB1T10 can provides 150 cd/m² display brightness 6:1 transimissive contrast ratio, 40/40/25/40 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 190/210 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
