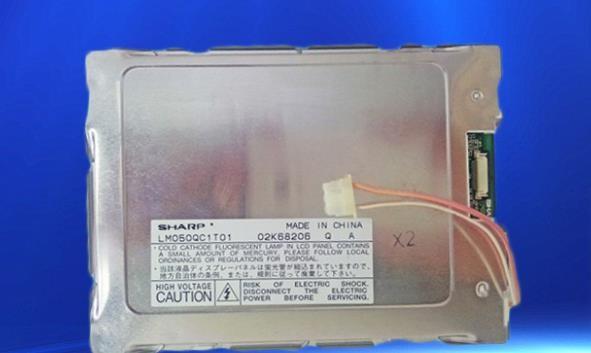

5" LCM 320×240RGB 100cd/m² LM050QC1T01 Sharp TFT LCD Display
Sharp LM050QC1T01 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 100 (Typ.) | 35/35/15/25 (Typ.)(CR≥5) | 230/120 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | STN, Normally Black, Transmissive | 30 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6551K | Color | X:0.310; Y:0.340 |
Sharp LM050QC1T01 Mechanical Features
| Panel Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×240 [QVGA] | RGB Vertical Stripe | 0.315×0.315 [80PPI] | 0.105×0.315 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 100.8(H) × 75.6(V) | 105.2(H) × 80.0(V) | 134(H) × 100(V) | 8.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 145g | - | - | ||
Sharp LM050QC1T01 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 0.6mA (Typ.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel Data (8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| IRISO | IMSA-9632S-20A-T | 0.5 mm | 20 pins | 1 pcs | ||
Sharp LM050QC1T01 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | Straight | 25K(Min.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 305±30V | 5.0/5.5mA (Typ./Max.) | 1.53W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 30/100KHz (Min./Max.) | 520/780V (Min.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |
LM050QC1T01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 100.8(W)×75.6(H) mm, outline size of 134(W)×100(H) mm, viewing area size of 105.2(W)×80.0(H) mm, net weight of 145g. As a STN, Normally Black, Transmissive LCM product, LM050QC1T01 can provides 100 cd/m² display brightness 30:1 transimissive contrast ratio, 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 230/120 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, external backlight driver is additionally needed.
