N133BGE-LB1 CHIMEI Innolux 13.3" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Chimei Innolux N133BGE-LB1 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| N133BGE-LB1 | a-Si TFT-LCD , LCM | CMN1341 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
Chimei Innolux N133BGE-LB1 Mechanical Features
| Panel Size : | 13.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.0716×0.2148 mm | 0.2148×0.2148 mm [118PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 293.42×164.97 mm | 296.42×167.97 mm | 318.3×189.2 mm | 2.85/3.05 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |

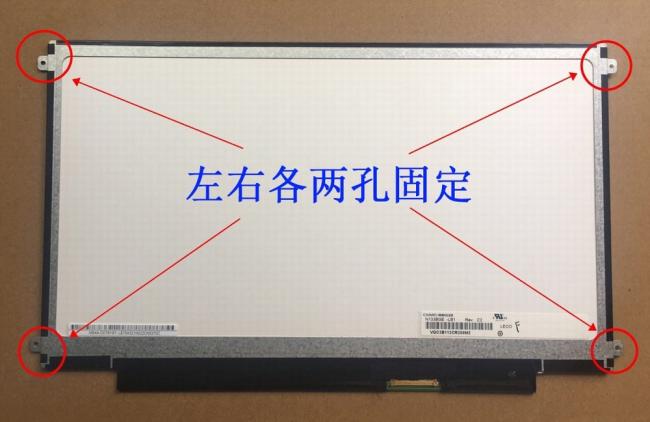

| Fixation : | Face mounting holes (4 pcs) on left, right slugs | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 245/260g (Typ./Max.) | Glare (Haze 0%), Hard coating (3H) | ||
Chimei Innolux N133BGE-LB1 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/20/45 (Typ.)(CR≥10) | 6 o'clock | 8/8 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.43 (Max.)(5 points) | ||
Chimei Innolux N133BGE-LB1 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 200/230mA (Typ./Max.) | 3.3V (Typ.) | 0.7W (Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (1 ch, 6-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-12 | 1 pcs | 0.5 mm | 40 pins | LVDS-40P1C6B-060B | |
Chimei Innolux N133BGE-LB1 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 12K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 59/63/66.15mA (Min./Typ./Max.) | 25.2±1.8V | 1.4/1.59/1.79W (Min./Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 130/156/175mA (Min./Typ./Max.) | 6.0/12.0/21.0V (Min./Typ./Max.) | 2.15W (Max.) | ||||
Chimei Innolux N133BGE-LB1 Packing Features
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 40 pcs / box | 10.93 Kgs | 540×450×275 mm (L×W×H) |
