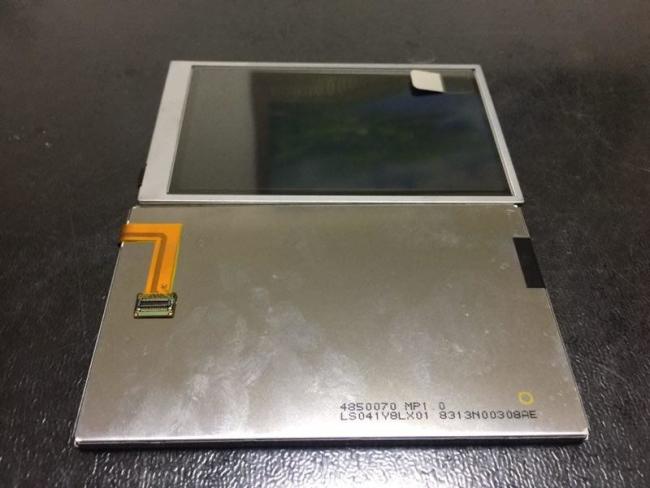

LS041Y8LX01 Sharp 4.1" LCM 800×480RGB 180cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
Sharp LS041Y8LX01 Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0375×0.1125 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1125×0.1125 mm (H×V) [225PPI] | |
| Mechanical Size : | Display Area | 90×54 mm (H×V) | Bezel Area | - |
| Outline Dim. | 104.785×63.9 mm (H×V) | Outline Depth | 3.62±0.15 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | 1 point | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | 44.0g | Surface | - |
Sharp LS041Y8LX01 Interface Details
| Signal Systerm : | CDP (3 Lane) + SPI | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 1.8/2.75V (Typ.)(VDDI/VDD) | Current Input | 13.5/28.3mA (Typ.)(IDDI/IDD) | ||
| Consumption | 102mW (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | 30P-JAQK-GWAN-TF(LF)(SN) | 30 pins | 1 pcs | |||
Sharp LS041Y8LX01 Backlight Details
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S2P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 9.6V (Typ.) | Current Input | 15mA (Typ.) | ||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
Sharp LS041Y8LX01 Optical Details
| Basic Information : | Brightness | 180 cd/m² (Typ.) | Contrast Ratio | 120:1 (Typ.) (Transmissive) 3:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | - | Optical Mode | Normally Black, Transflective | |
| Viewing Direction | - | Response Time | - | |
| Color Performance : | Chromaticity | Wx:0.332; Wy:0.342 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 5525K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| 3D Type | - | Reflectance | 3.7% (Typ.) |
