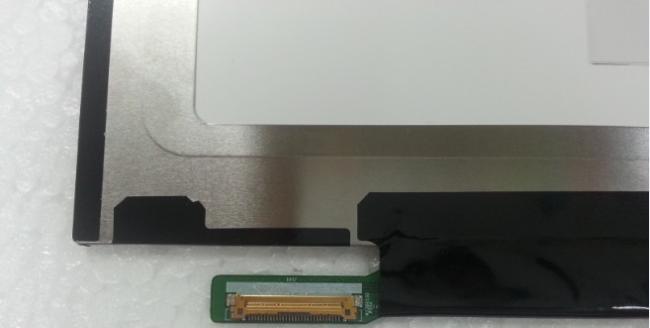

N133HSE-E21 CHIMEI Innolux 13.3" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Chimei Innolux N133HSE-E21 Application Details
| Basic Detail : | Manufacturer | Model Name | N133HSE-E21 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | CMN1349 | |
| Panel Size | 13.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
Chimei Innolux N133HSE-E21 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.43 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux N133HSE-E21 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.051×0.153 mm | Pixel Pitch(W×H) | 0.153×0.153 mm [166PPI] | |
| Physical Size : | Active Viewing | 293.76(W)×165.24(H) mm | Overall Dim. | 305.35(W)×187.56(H) mm |
| Bezel Opening | - | Overall Depth | 2.7/5.2(Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 240/255g (Typ./Max.) | Surface | Antiglare, Hard coating (3H |
Chimei Innolux N133HSE-E21 Interface Details
| Signal Electrical : | Input Current | 275/305mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.01W (Max.) | Signal Interface | eDP (2 Lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-030E-12 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-017A | |
Chimei Innolux N133HSE-E21 Lightting Details
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 9S6P | Life | 12K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 132mA (Typ.) | Input Voltage | 25.2/27.0/29.7V (Min./Typ./Max.) | ||
| Consumption | 3.56/3.92W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
