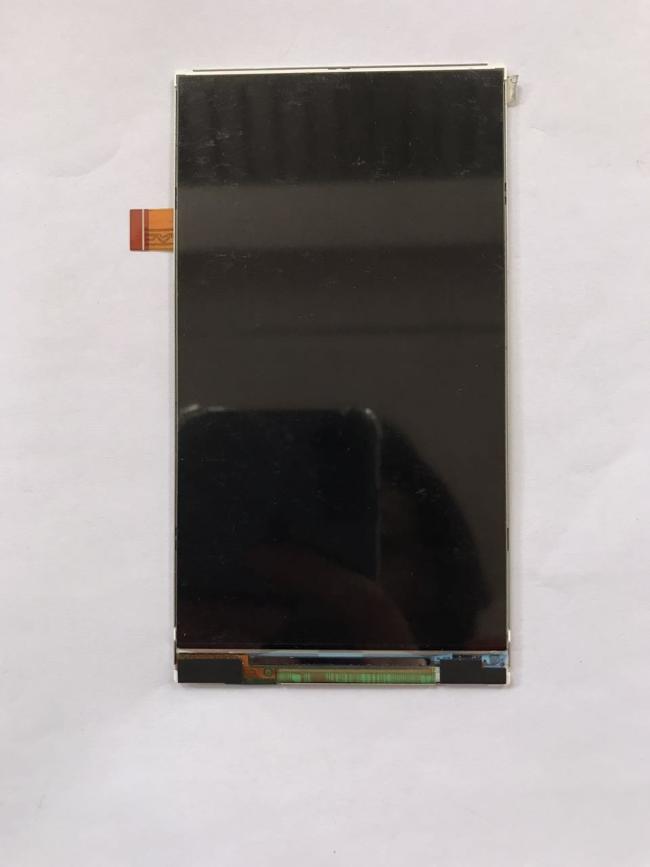

4.7INCH LCM 720×1280RGB 400cd/m² LQ047K3SX08 Sharp TFT LCD Display
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2DAYS
Brand:
Sharp
Product Description
Sharp LQ047K3SX08 Mechanical Features
| Panel Size : | 4.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 720(RGB)×1280, WXGA | RGB Vertical Stripe | 0.0269×0.0807 mm | 0.0807×0.0807 mm [314PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 58.104×103.296 mm | - | 61.912×114.38 mm | 1.55/2.30 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 9:16 (W : H) | Portrait type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 24.5g | - | ||
Sharp LQ047K3SX08 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 10S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 30.0/33.0V (Typ./Max.) | 600mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
Sharp LQ047K3SX08 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 10/41mA (Typ.)(IDDIO/ICI) | 1.8/2.8V (Typ.)(VDDIO/VCI) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | MIPI (3 data lanes) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment  |
| 1 pcs | 0.3 mm | 25 pins | ||||
Sharp LQ047K3SX08 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | New Mode2, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6747K | 16.7M (8-bit) | X:0.308; Y:0.330 |
