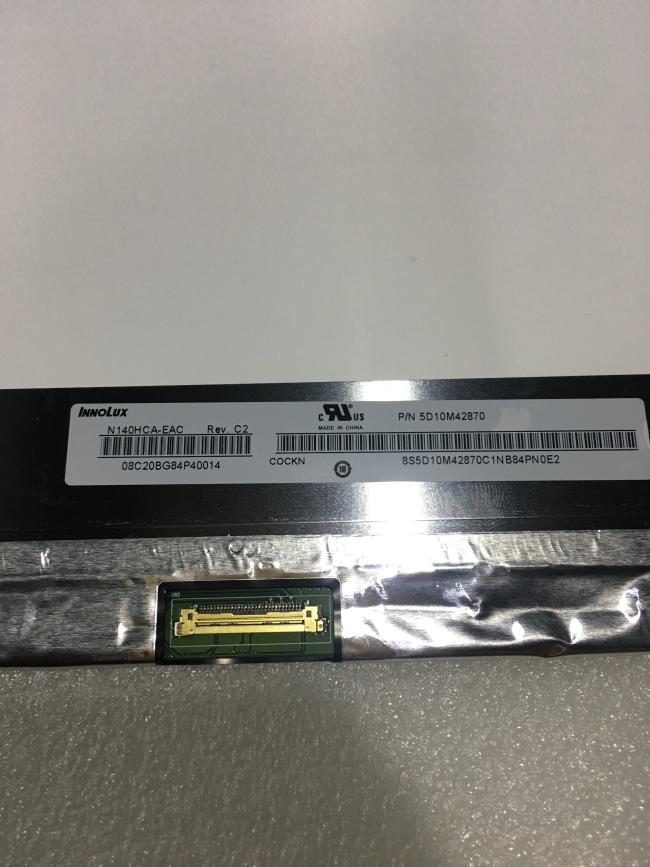

N140HCA-EAC INNOLUX 14.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux N140HCA-EAC Application Details
| Basic Information : | Brand | Model | N140HCA-EAC | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 14.0" | Alias | CMN14D4 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
Innolux N140HCA-EAC Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0537×0.1611 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1611×0.1611 (H×V) [157PPI] | |
| Mechanical Size : | Active Area(mm) | 309.31(H) × 173.99(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 315.81(H) × 205.12(V) | Depth(mm) | 2.85/3.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Spec : | Weight | 280g (Max.) | Treatment | Antiglare, Hard coating (3H) |
Innolux N140HCA-EAC Optical Details
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14/11 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 66% coverage |
| Adobe RGB | 50% coverage | DCI-P3 | 49% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux N140HCA-EAC Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 195/223mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.78W (Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.2 | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-76 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020Q | |
Innolux N140HCA-EAC Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 130/156/165mA (Min./Typ./Max.) | ||
| Consumption | 1.51/1.56W (Typ./Max.) | |||||
Innolux N140HCA-EAC Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | - | 435×350×275 mm (L×W×H) |
