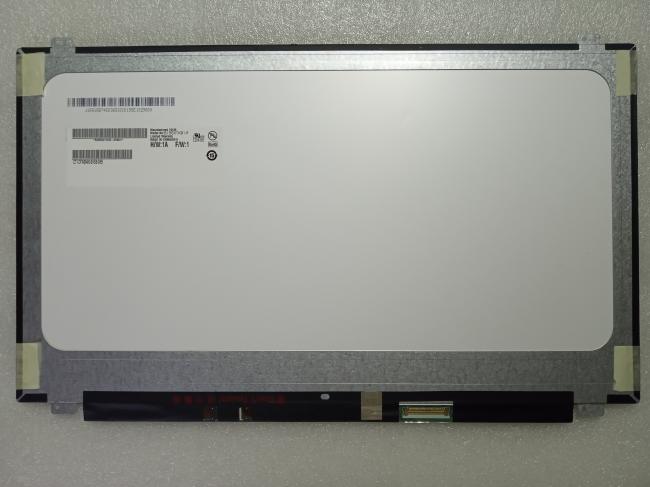

N156BGA-EB3 Innolux 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux N156BGA-EB3 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| N156BGA-EB3 | a-Si TFT-LCD , LCM | CMN15FD | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
Innolux N156BGA-EB3 Mechanical Features
| Panel Size : | 15.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.084×0.252 mm | 0.252×0.252 mm [100PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 344.232×193.536 mm | - | 350.73×216.56 mm | 3.05/3.2 (Typ.Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 355/370g (Typ./Max.) | Glare (Haze 0%), Hard coating (3H) | ||
Innolux N156BGA-EB3 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/20/45 (Typ.)(CR≥10) | 6 o'clock | 3/7 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Max.)(13 points) | ||
Innolux N156BGA-EB3 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3V (Typ.) | 0.7W (Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (1 Lane) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-030E-76 | 1 pcs | 0.5 mm | 30 pins | EDP-30P1L-030A | |
Innolux N156BGA-EB3 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 61.2mA (Typ.) | 28.6/31.9/33V (Min./Typ./Max.) | 1.95/2.02W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 158/199/207mA (Min./Typ./Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 2.48W (Max.) | ||||
