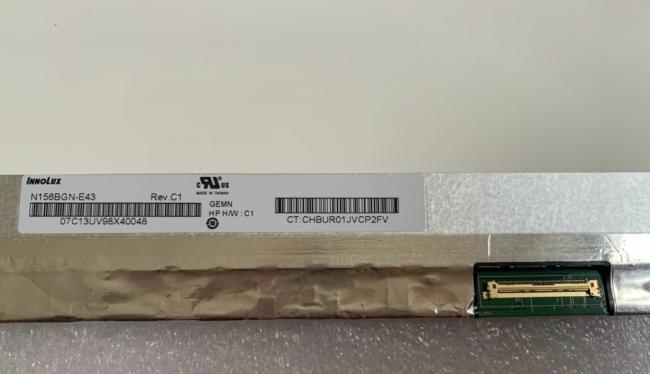

N156BGN-E43 Innolux 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: INNOLUX
Product Description

Innolux N156BGN-E43 Application Details

Basic Info :
Panel Brand

N156BGN-E43Panel Model
Diagonal Size
15.6"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
CMN15FF
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



Innolux N156BGN-E43 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.084×0.252 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.252×0.252 mm (H×V) [100PPI]
Mechanical Size :
Display Area
344.232×193.536 mm (H×V)
Bezel Area
-
Outline Dim.
350.66×216.25 mm (H×V)
Outline Depth
3.08/3.2 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Touch Screen :
Touch Points
10 points
TP Signal
USB
TP Controller
With touch controller
Touchscreen
On-Cell Touch
Holes & Brackets :
Without
Other Features :
Weight
350/365g (Typ./Max.)
Surface
Glare (Haze 0%), Hard coating (3H)



Innolux N156BGN-E43 Optical Details

Basic Information :
Brightness
220 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
3/7 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.25/1.54 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
48%
sRGB
66% coverage
Adobe RGB
50% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N156BGN-E43 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
15K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
5.0/12.0/21.0V (Min./Typ./Max.)
Current Input
176/199/210mA (Min./Typ./Max.)
Consumption
2.52W (Max.)



Innolux N156BGN-E43 Interface Detail

Signal Systerm :
eDP (1 Lane), eDP1.2
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
TBD
Consumption
TBD
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20455-040E-12
0.5 mm
40 pins
1 pcs




Innolux N156BGN-E43 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
20 pcs / box - 500×370×270 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
