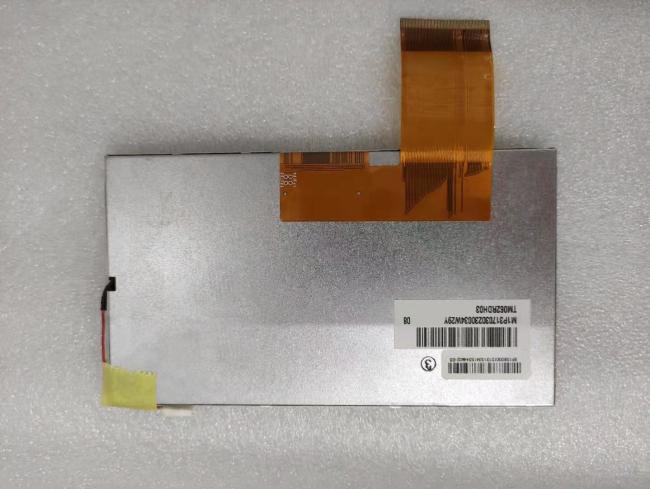

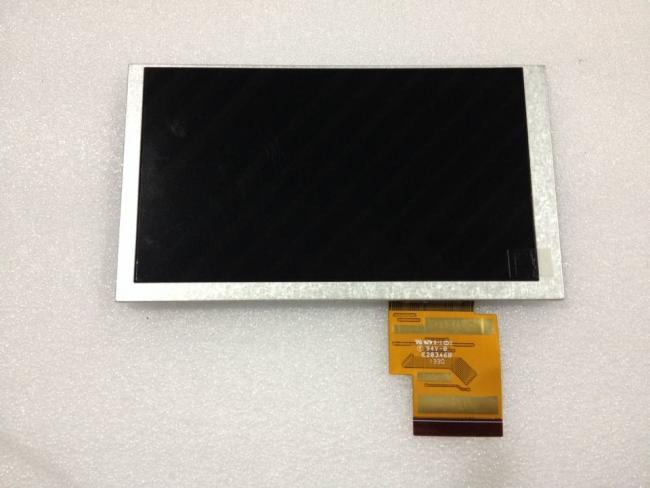

TCG070WVLPAANN-AN00 Kyocera 7INCH LCM 800×480RGB 350NITS WLED TTL INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG070WVLPAANN-AN00 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TCG070WVLPAANN-AN00 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -25 ~ 80 °C | - |
Kyocera TCG070WVLPAANN-AN00 Mechanical Features
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 152.4×91.44 mm | 154.4×93.4 mm | 165×104.4 mm | 8.2/8.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 195g (Typ.) | Antiglare | ||
Kyocera TCG070WVLPAANN-AN00 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/60/80 (Typ.)(CR≥10) | 12 o'clock | 5/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 8405K | 262K (6-bit) | X:0.290; Y:0.305 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.43 (Max.)(5 points) | ||
Kyocera TCG070WVLPAANN-AN00 Electronics Features
| Reverse Scan : | Yes (180°) |
|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
Kyocera TCG070WVLPAANN-AN00 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 180/235mA (Typ./Max.) | 3.3V (Typ.) | 0.594W (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| IRISO | IMSA-9681S-40A-GF | 1 pcs | 0.5 mm | 40 pins | ||
Kyocera TCG070WVLPAANN-AN00 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 2 strings | 2 strings | 70K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 60mA (Typ.) | 12.0/14.1V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
