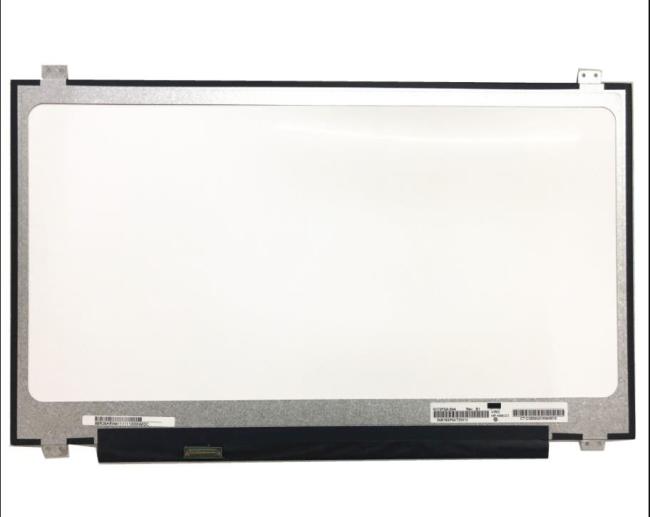

N173FGA-E44 Innolux 17.3" 1600(RGB)×900 220 cd/m² INDUSTRIAL LCD DISPLAY
Innolux N173FGA-E44 Application Details
| Basic Detail : | Manufacturer | Model Name | N173FGA-E44 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 17.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
Innolux N173FGA-E44 Optical Details
| Basic Information : | Luminance | 220 cd/m² (Typ.) | Contrast Ratio | - |
|---|---|---|---|---|
| Good View at | - | Response Speed | - | |
| Viewing Angle | - | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 262K (6-bit) |
Innolux N173FGA-E44 Mechanical Details
| Pixel Features : | Number of Pixel | 1600(RGB)×900 [HD+] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0796×0.2388 mm | Pixel Pitch(W×H) | 0.2388×0.2388 mm [106PPI] | |
| Physical Size : | Active Viewing | 382.08(W)×214.92(H) mm | Overall Dim. | - |
| Bezel Opening | - | Overall Depth | 4.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style |
Innolux N173FGA-E44 Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
with a built-in WLED backlight, without touch screen. N173FGA-E44 supports display 1600(RGB)×900 (HD+) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 382.08(W)×214.92(H) mm. As a TN, Normally White, Transmissive LCM product, N173FGA-E44 can provides 220 cd/m² display brightness . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. N173FGA-E44 utilizes eDP as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz.
