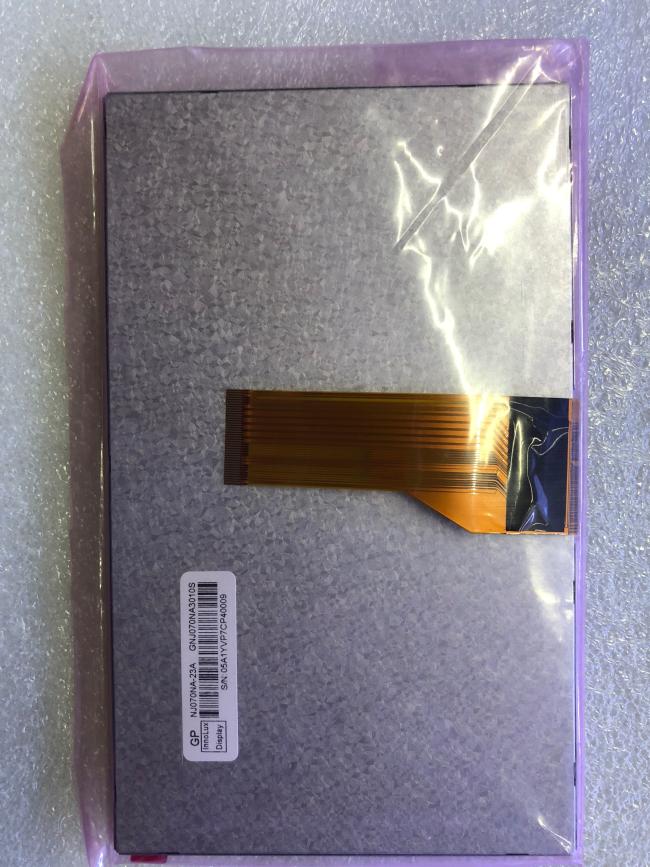

NJ070NA-23A Innolux 7.0" 1024(RGB)×600 500 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux NJ070NA-23A Application Details
| Basic Info : | Panel Brand | Panel Model | NJ070NA-23A | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
Innolux NJ070NA-23A Mechanical Details
| Pixel Features : | Pixel Format | 1024(RGB)×600 [WSVGA] | Dot Pitch | 0.0502×0.1432 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1506×0.1432 mm (H×V) [170PPI] | |
| Mechanical Size : | Display Area | 154.214×85.92 mm (H×V) | Bezel Area | 157.21×89.49 mm (H×V) |
| Outline Dim. | 164.9×100 mm (H×V) | Outline Depth | 4.8±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 140g (Typ.) | Surface | Hard coating |
Innolux NJ070NA-23A Optical Details
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
Innolux NJ070NA-23A Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 8.4/9.9/10.2V (Typ./Max.) | Current Input | 265mA (Typ.) | ||
| Consumption | 2.62W (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
Innolux NJ070NA-23A Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Input | 35/20/0.26/0.26mA (Typ.)(DIDD/AIDD/IGH/IGL) | ||
| Consumption | 0.4W (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
Innolux NJ070NA-23A Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 50 pcs / box | 10.12±0.51 Kgs | 525×362×250 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
