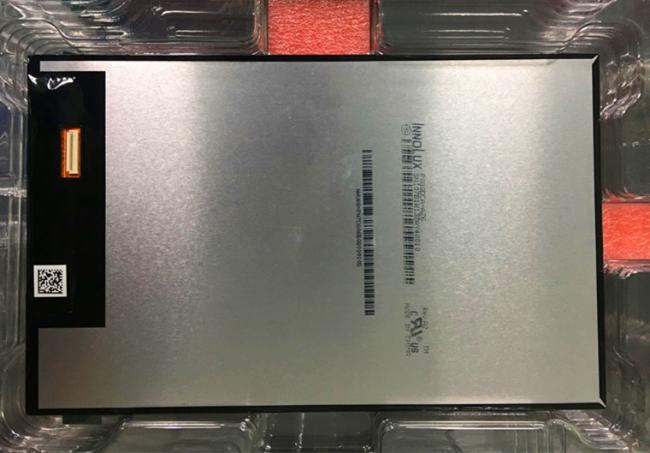

P097PFG-AH1 Innolux 9.7" 1536(RGB)×2048 350 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux P097PFG-AH1 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| P097PFG-AH1 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 60 °C | -25 ~ 70 °C |
Innolux P097PFG-AH1 Mechanical Features
| Panel Size : | 9.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1536(RGB)×2048 | RGB Vertical Stripe | 0.032×0.096 mm | 0.096×0.096 mm [264PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 147.456×196.608 mm | - | 160.3×208.93 mm | 2.05/4.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:4 (W : H) | Portrait type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 135g (Max.) | Hard coating | ||
Innolux P097PFG-AH1 Mechanical Features
| Panel Size : | 9.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1536(RGB)×2048 | RGB Vertical Stripe | 0.032×0.096 mm | 0.096×0.096 mm [264PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 147.456×196.608 mm | - | 160.3×208.93 mm | 2.05/4.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:4 (W : H) | Portrait type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 135g (Max.) | Hard coating | ||
Innolux P097PFG-AH1 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 65/50/25mA (Max.)(IDD/ISP/ISN) | 1.8/5.6/-5.6V (Typ.)(VDDI/VSP/VSN) | 0.55W (Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | MIPI (2 ch, 4 data lanes) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | FH36W-61S-0.3SHW(50) | 1 pcs | 0.3 mm | 61 pins | ||
Innolux P097PFG-AH1 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 4 strings | - | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
