P101KDA-AP1 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux P101KDA-AP1 Application Details
| Basic Info : | Panel Brand | Panel Model | P101KDA-AP1 | |
|---|---|---|---|---|
| Diagonal Size | 10.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -20 ~ 60 °C |
Innolux P101KDA-AP1 Mechanical Details
| Pixel Features : | Pixel Format | 1200(RGB)×1920 [WUXGA] | Dot Pitch | 0.0376×0.1128 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1128×0.1128 mm (H×V) [225PPI] | |
| Mechanical Size : | Display Area | 135.36×216.576 mm (H×V) | Bezel Area | - |
| Outline Dim. | 143×227.93 mm (H×V) | Outline Depth | 2.2/4.1 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 10:16 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 130g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
Innolux P101KDA-AP1 Optical Details
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 25 (Typ.)(Tr+Td); 45 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.310 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7525K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
Innolux P101KDA-AP1 Backlight Details
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4 strings | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 23.2±2.4V | Current Input | 20mA (Typ.) | ||
| Consumption | 2.1W (Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
Innolux P101KDA-AP1 Interface Details
| Signal Systerm : | MIPI (4 data lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.15A (Typ.) | ||

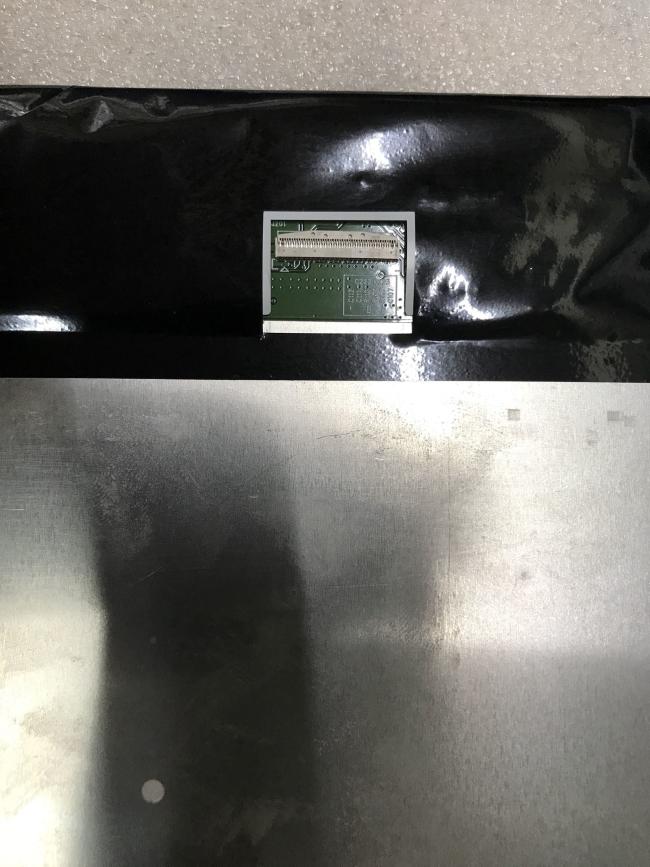

| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20718-051E-01 | 0.3 mm | 51 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
