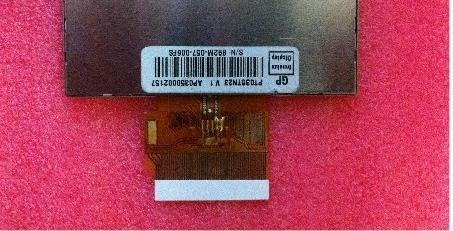

PT035TN23 V.1 Innolux 3.5" 320(RGB)×240 350 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux PT035TN23 V.1 Application Details
| Basic Info : | Panel Brand | Panel Model | PT035TN23 V.1 | |
|---|---|---|---|---|
| Diagonal Size | 3.5" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
Innolux PT035TN23 V.1 Mechanical Details
| Pixel Features : | Pixel Format | 320(RGB)×240 [QVGA] | Dot Pitch | 0.073×0.219 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.219×0.219 mm (H×V) [115PPI] | |
| Mechanical Size : | Display Area | 70.08×52.56 mm (H×V) | Bezel Area | 72.08×54.56 mm (H×V) |
| Outline Dim. | 76.9×64.4 mm (H×V) | Outline Depth | 4.23±0.2 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Other Features : | Weight | 43.0g (Typ.) | Surface | Antiglare |
Innolux PT035TN23 V.1 Optical Details
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/50/65 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 9/16 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
Innolux PT035TN23 V.1 Backlight Details
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 19.8±1.2V | Current Input | 20±2mA | ||
| Consumption | 396mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | |
Innolux PT035TN23 V.1 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) + SPI | Logic Voltage | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 12/18mA (Typ./Max.) | ||
| Consumption | 40mW (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 60 pins | 1 pcs | ||||
