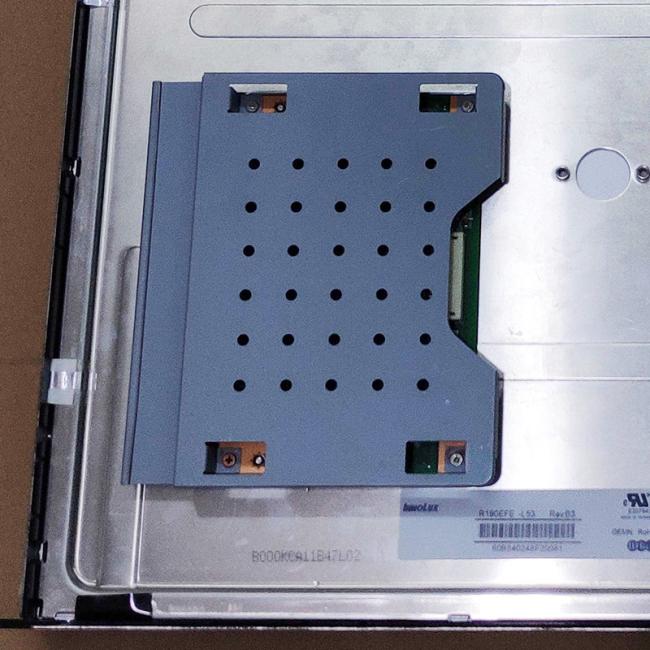

R190EFE-L53 Innolux 19.0" 1280(RGB)×1024 1400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux R190EFE-L53 Application Details
| Basic Info : | Panel Brand | Panel Model | R190EFE-L53 | |
|---|---|---|---|---|
| Diagonal Size | 19.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
Innolux R190EFE-L53 Mechanical Details
| Pixel Features : | Pixel Format | 1280(LCR)×1024 [SXGA] | Dot Pitch | 0.098×0.294 mm (H×V) |
|---|---|---|---|---|
| Configuration | LCR Vertical Stripe | Pixel Pitch | 0.294×0.294 mm (H×V) [86PPI] | |
| Mechanical Size : | Display Area | 376.32×301.056 mm (H×V) | Bezel Area | 380.3×305.0 mm (H×V) |
| Outline Dim. | 396×324 mm (H×V) | Outline Depth | 20.1/25.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4 pcs) on left, right bezel | |||
| Other Features : | Weight | 2.11/2.31Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
Innolux R190EFE-L53 Optical Details
| Basic Information : | Brightness | 1400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | DD-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 15/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.265; Wy:0.305 | Color Numbers | Grayscale (8-bit) |
| Color Temperature | 10776K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
Innolux R190EFE-L53 Backlight Details
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4 strings | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 38.4/43.2V (Typ./Max.) | Current Input | 105mA (Typ.) | ||
| Consumption | 16.1/18.1W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| FCN | JH2-D2-143N | 2.0 mm | 14 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 24.0±2.4V | Current Input | 0.7±0.2A | ||
| Consumption | 16.8/23.8W (Typ./Max.) | |||||
Innolux R190EFE-L53 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 0.58/0.812A (Typ./Max.) | ||
| Consumption | 6.96/9.74W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSAKT2407P30A | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160H | |
Innolux R190EFE-L53 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 11 pcs / box | 23.85 Kgs | 567×477×416 mm |
