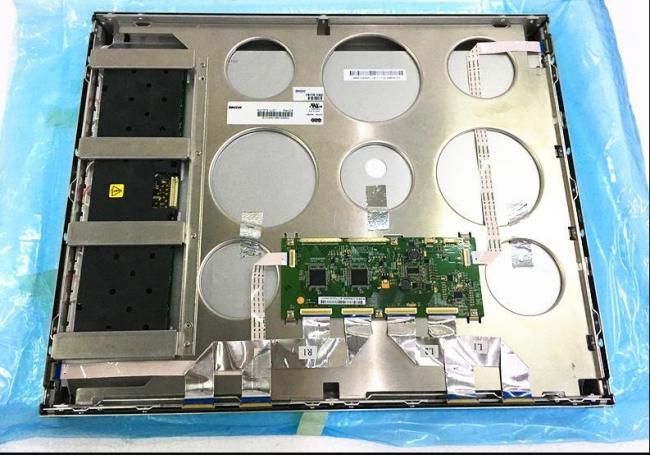

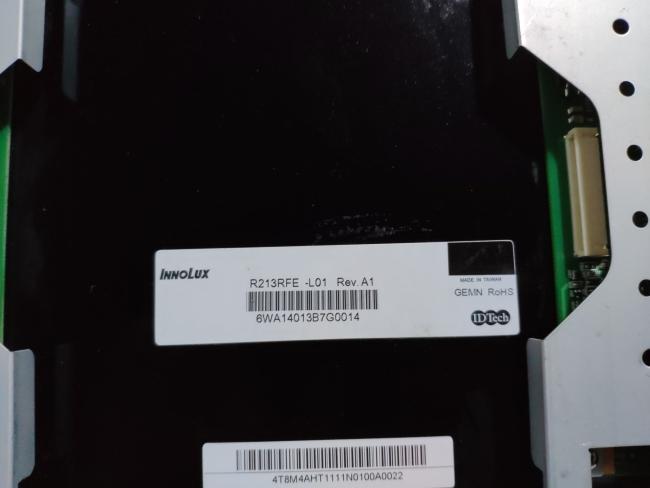

R213RFE-L01 Innolux 21.3" 2048(RGB)×1536 1000 cd/m² INDUSTRIAL LCD DISPLAY
Innolux R213RFE-L01 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| R213RFE-L01 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
Innolux R213RFE-L01 Mechanical Features
| Screen Size : | 21.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 2048(RGB)×1536, QXGA | RGB Vertical Stripe | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| - | - | Antiglare, Hard coating (3H) | ||
Innolux R213RFE-L01 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 1000 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | - | - | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7502K | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC) | X:0.299; Y:0.315 | |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable |
whose pixels are arranged in RGB Vertical Stripe., with surface treament of Antiglare, Hard coating (3H). As a IPS, Normally Black, Transmissive LCM product, R213RFE-L01 can provides 1000 cd/m² display brightness 1400:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit / 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors. This product adopted WLED as it's backlight systerm and have a working life time of 50K hours. R213RFE-L01 utilizes LVDS as it's signal inputting systerm. For more latest product detail of R213RFE-L01 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with Innolux or it's distributor
