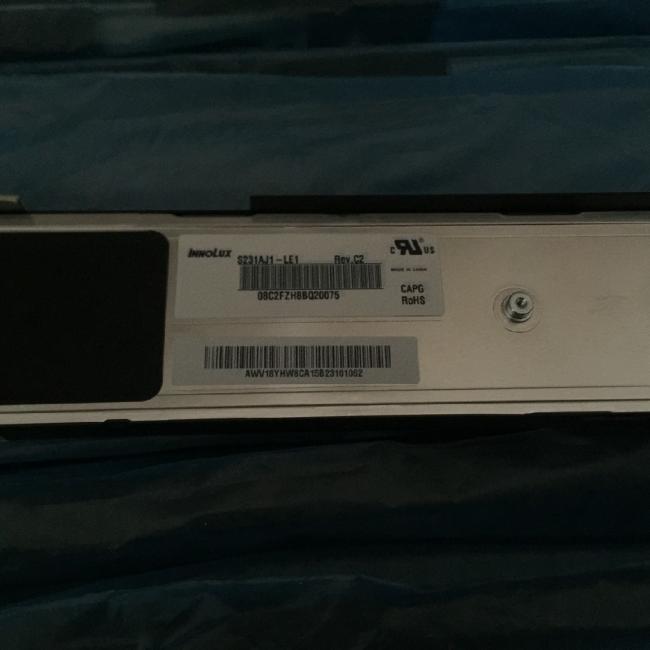

S231AJ1-LE1 Innolux 23.1" 1920×158(RGB) 500 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux S231AJ1-LE1 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| S231AJ1-LE1 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
Innolux S231AJ1-LE1 Mechanical Features
| Panel Size : | 23.1 inch (Native bar) | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920×158(RGB) | RGB Horizontal Stripe | 0.305×0.10167 mm | 0.305×0.305 mm [83PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 585.6×48.19 mm | 587.6×50 mm | 597.4×60.4 mm | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | >3:1 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Antiglare (Haze 1%), Antireflection | ||
Innolux S231AJ1-LE1 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | Super MVA, Normally Black, Transmissive | 3000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 88/88/88/88 (Typ.)(CR≥20) | Symmetry | 9.5 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9969K | 16.7M (8-bit) | X:0.280; Y:0.290 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 99% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux S231AJ1-LE1 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 12.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 7003J30-000000-G2 | 1 pcs | 30 pins | ||||
Innolux S231AJ1-LE1 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 2.43/2.5A (Typ./Max.) | 12.0V (Typ.) | 2.91/3.03W (Typ./Max.) | ||||
