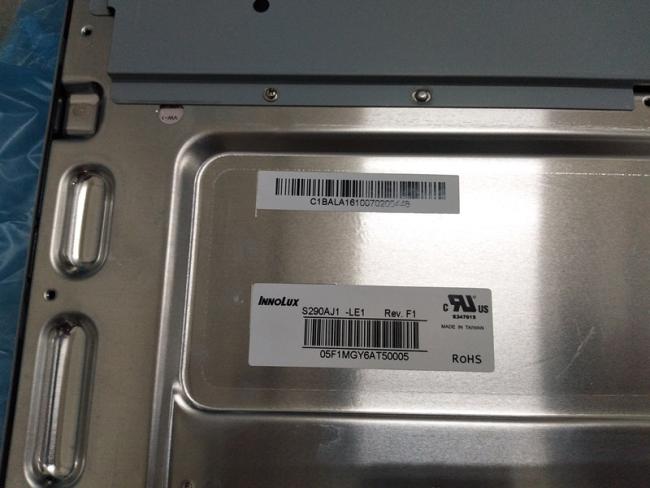

S290AJ1-LE1 Innolux 28.6" 1920(RGB)×540 1000 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux S290AJ1-LE1 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| S290AJ1-LE1 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
Innolux S290AJ1-LE1 Mechanical Features
| Screen Size : | 28.6" (1/2 cut of 32.0") | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×540 | RGB Vertical Stripe | 0.12125×0.36375 mm | 0.36375×0.36375 mm [69PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 698.4×196.425 mm | 702.4×200.43 mm | 731.46×229.49 mm | 19.8/30.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | >3:1 | Landscape / Portrait | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.40±0.12g | - | Antiglare (Haze 3.4%) | ||
Innolux S290AJ1-LE1 Mechanical Features
| Screen Size : | 28.6" (1/2 cut of 32.0") | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×540 | RGB Vertical Stripe | 0.12125×0.36375 mm | 0.36375×0.36375 mm [69PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 698.4×196.425 mm | 702.4×200.43 mm | 731.46×229.49 mm | 19.8/30.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | >3:1 | Landscape / Portrait | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.40±0.12g | - | Antiglare (Haze 3.4%) | ||
Innolux S290AJ1-LE1 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| CviLux | CI0114M1HR0-LA | 1 pcs | 14 pins | 2.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 24.0±1.2V | 1.55/1.9A (Typ./Max.) | |||||
Innolux S290AJ1-LE1 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 0.29/0.36A (Typ./Max.) | 3.3/3.67W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| FCN | WF23-402-5133 | 1 pcs | 51 pins | 0.5 mm | ||
Innolux S290AJ1-LE1 Packing Features
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 8 pcs / box | 27.1 Kgs | 838×573×306 mm (L×W×H) |
