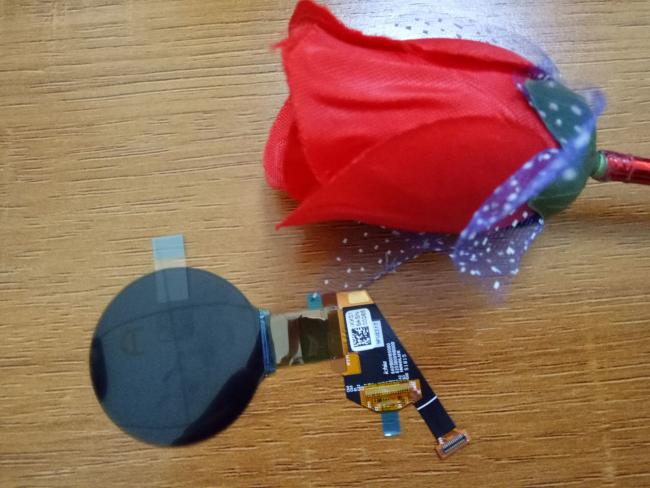

WJ014ZE-02A Innolux 1.39" 400(RGB)×400 300 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux WJ014ZE-02A Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| WJ014ZE-02A | AM-OLED , OLED | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C |
Innolux WJ014ZE-02A Mechanical Features
| Screen Size : | 1.39" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 400(RGB)×400 | RGB Vertical Stripe | 0.0295×0.0885 mm | 0.0885×0.0885 mm [287PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 35.4×35.4 mm | - | 38.6×40.5 mm | 0.71 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Circular | 1:1 | Landscape / Portrait | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.50g (Typ.) | ||||
Innolux WJ014ZE-02A Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | - | 10000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥1600) | 4 (Max.)(Tr+Tf) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7525K | 16.7M (8-bit) | X:0.300; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 103% | 98% | 96% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 95% | 77% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux WJ014ZE-02A Electronics Features
| Refresh Rate : | 60Hz |
|---|---|
| Power Consumption : | 143.5mW (Typ.) |
Innolux WJ014ZE-02A Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/2.8/4.6/-2.4V (Typ.)(VDDIO/VCI/PVDD/PVEE) | - | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (1 data lane) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| molex | 504248-2410 | 1 pcs | 24 pins | 0.4 mm | ||
Innolux WJ014ZE-02A Packing Features
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 160 pcs / box | - | 350×274×207 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
