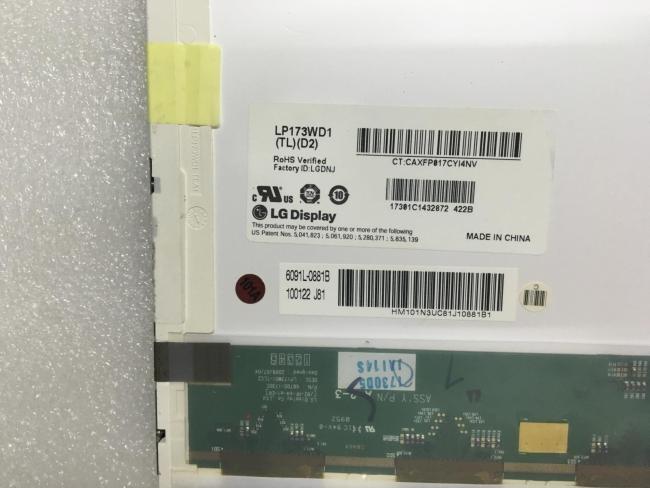

LP173WD1-TLD2 LG Display 17.3" 1600(RGB)×900 200 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LP173WD1-TLD2 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LP173WD1-TLD2 | a-Si TFT-LCD , LCM | LP173WD1 (TL)(D2) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LP173WD1-TLD2 Mechanical Features
| Panel Size : | 17.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1600(RGB)×900, HD+ | RGB Vertical Stripe | 0.07956×0.23868 mm | 0.23868×0.23868 mm [106PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 381.89×214.81 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Wedge (PCBA Bent, T≥5.2mm) | |
LG Display LP173WD1-TLD2 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| - | - | - | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 262K (6-bit) |
LG Display LP173WD1-TLD2 Electronics Features
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
LG Display LP173WD1-TLD2 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 6-bit) | ||||
. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Normally White, Transmissive LCM product, LP173WD1-TLD2 can provides 200 cd/m² display brightness 400:1 transimissive contrast ratio . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. LP173WD1-TLD2 utilizes LVDS (2 ch, 6-bit) as it's signal inputting systerm Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP173WD1-TLD2 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. The above parameters are not from the datasheet, only as a reference, please use with caution!
