LP140WH8-TPA1 LG Display 14.0" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LP140WH8-TPA1 Application Details
| Basic Information : | Brand | Model | LP140WH8-TPA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 14.0" | Alias | LP140WH8 (TP)(A1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration |
LG Display LP140WH8-TPA1 Mechanical Details
| Pixel Features : | Resolution | 1366(RGB)×768, WXGA | Dot Pitch(mm) | 0.0755×0.2265 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2265×0.2265 (H×V) [112PPI] | |
| Mechanical Size : | Active Area(mm) | 309.399(H) × 173.952(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | - | Treatment | Glare (Haze 0%) |
LG Display LP140WH8-TPA1 Optical Details
| Basic Information : | Luminance(cd/m²) | 220 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | - | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | - | |
| Color Performance : | White Coordinate | - | Display Colors | 262K (6-bit) |
LG Display LP140WH8-TPA1 Electronics Details
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

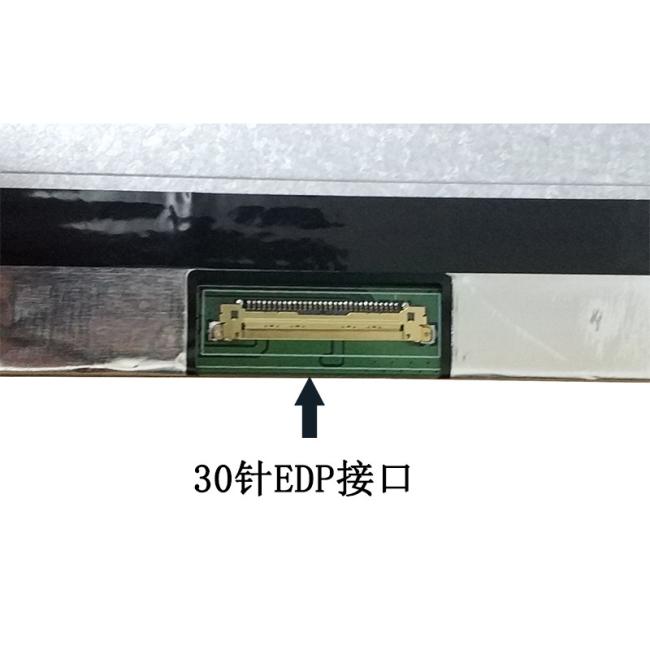

without touch screen. LP140WH8-TPA1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.399(W)×173.952(H) mm, with surface treament of Glare (Haze 0%), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a TN, Normally White, Transmissive LCM product, LP140WH8-TPA1 can provides 220 cd/m² display brightness 600:1 transimissive contrast ratio . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. LP140WH8-TPA1 utilizes eDP (2 Lanes) as it's signal inputting systerm Connector. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP140WH8-TPA1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
